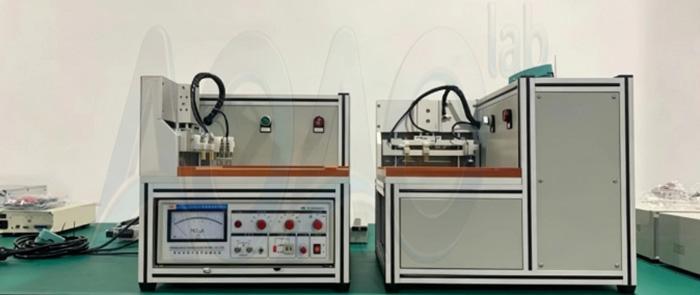

Battery Short Circuit Tester For Pouch Film And Tab

This battery short circuit testing machine is used for battery tab and pouch film, battery anode and cathode tab short circuit testing after top-side sealing and before electrolyte filled.

Brand:AOAO NEW ENERGY
item no.:AOAO-ADT-001
order(moq):1set
Payment:L/C, T/T
product origin:China
shipping port:XIAMEN

Battery Short Circuit Tester For Pouch Film And Tab

SPECIFICATIONS

This battery short circuit testing machine is used for battery tab and pouch film, battery anode and cathode tab short circuit testing after top-side sealing and before Electrolyte filled.

Model	AOAO-ADT-001
Source voltage	AC220V, 50HZ to DC 24V
Air pressure	2.0．4-0．8Mpa
Warranty	One year limited warranty with lifetime support

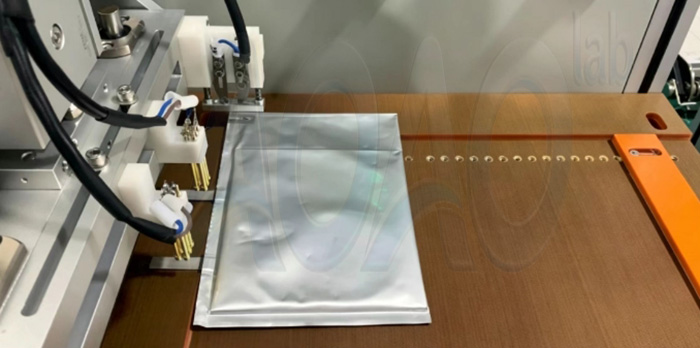

Three point testing	Battery anode tab, cathode tab, pouch film
Suitable battery size	300*200mm
Machine Size (WDH)	About 250500400mm
Weight	About 50kg

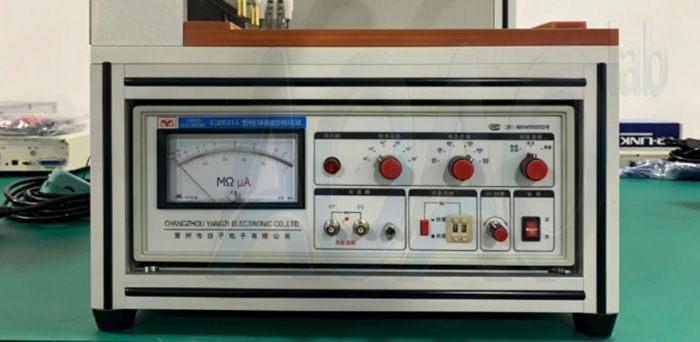

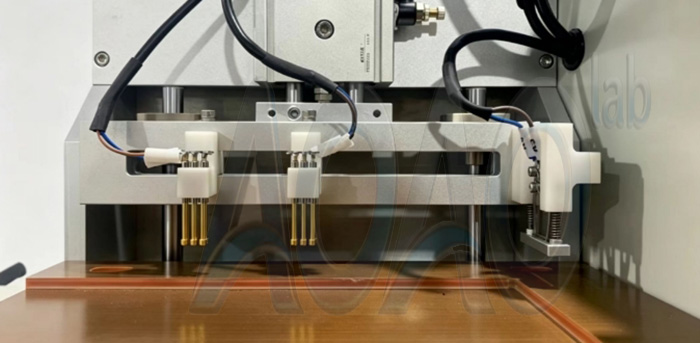

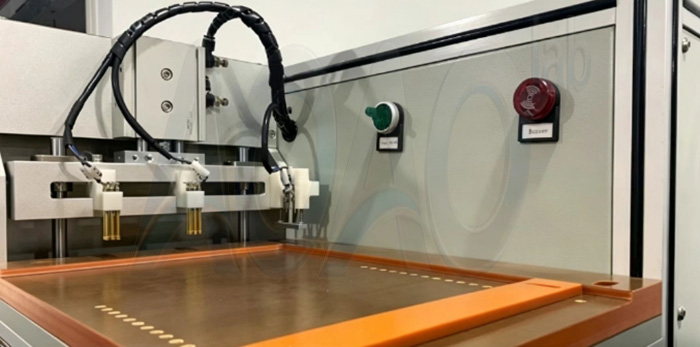

Configuration	ØTest bench device ØPricking device Øsecurity protection plate Øadjustable positioning plate Øguide device control electric box 1 set testing instrument
