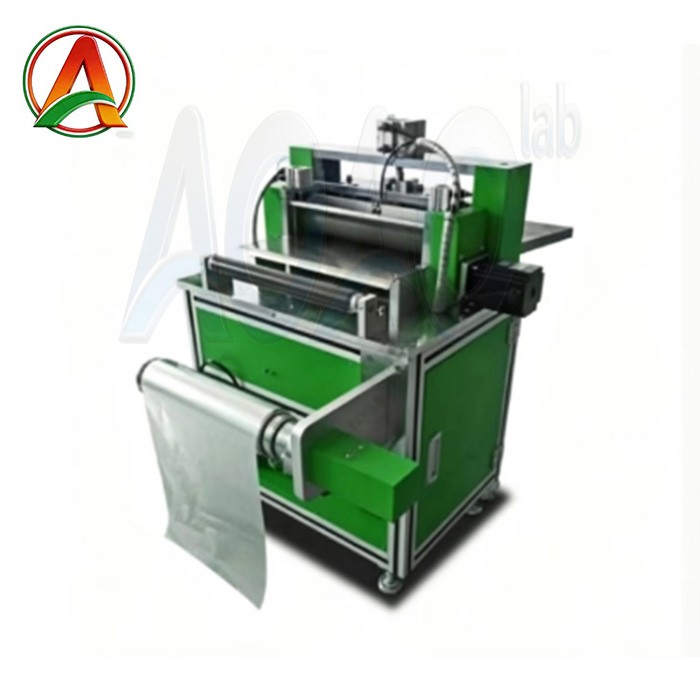

Battery Electrode Cutting Machine

Battery Electrode Cutting Machine

SPECIFICATIONS

This battery electrode cutting machine is mainly used for Lithium battery anode and cathode electrode single piece cutting. Can be arbitrarily set cutting length, quantity, speed, can be cut separately, this machine with automatic unwinding function, by the tension frame control automatic discharge and automatic stop, discharge speed can be adjusted, the loading shaft for the air expansion shaft, easy loading and unloading.

Can be arbitrarily set cutting length, quantity, speed, can be cut separately.

Unwinding automatically adjusts the tension.

Continuous cutting, fixed length and optical fiber tracking can be selected to adapt to multi-section cutting, and the compensation of the incision can be set.

The width is 10~300mm, and the length is 1~ 9999mm.for the AOAO-LCP-400 model the width is 10-400mm.

The machine adopts PLC,HIM control, easy to use and operate.

The appearance is exquisite, sheet metal adopts three-dimensional geometric design, simple and beautiful.

Easy to operate, safe and reliable, small size.

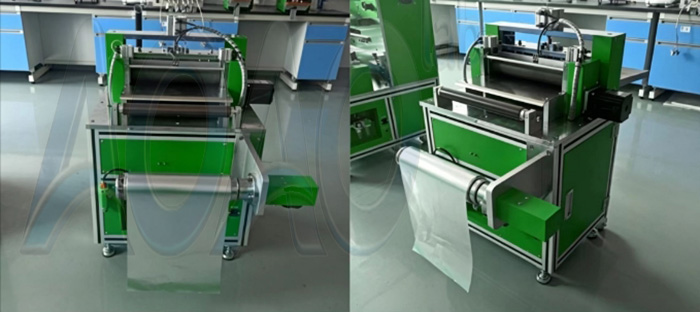

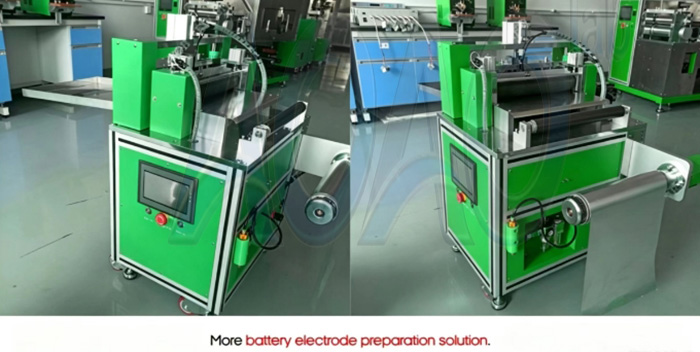

Product Display
