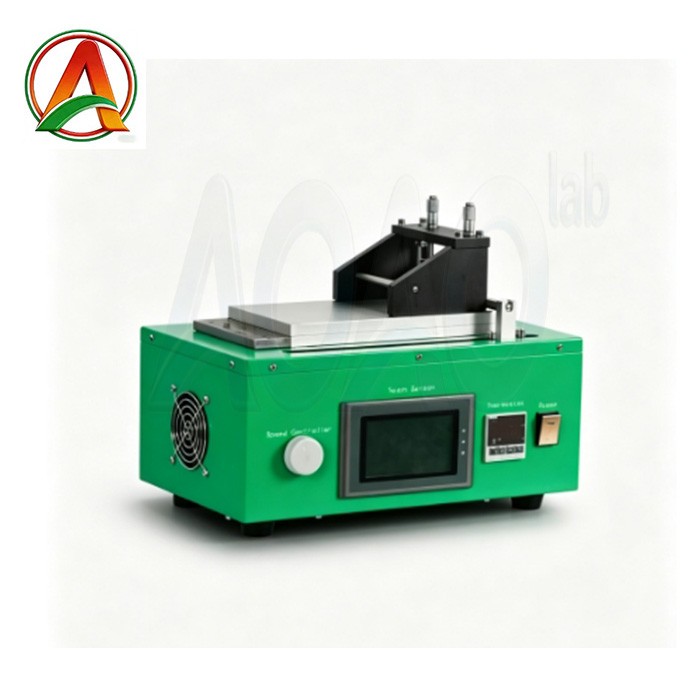

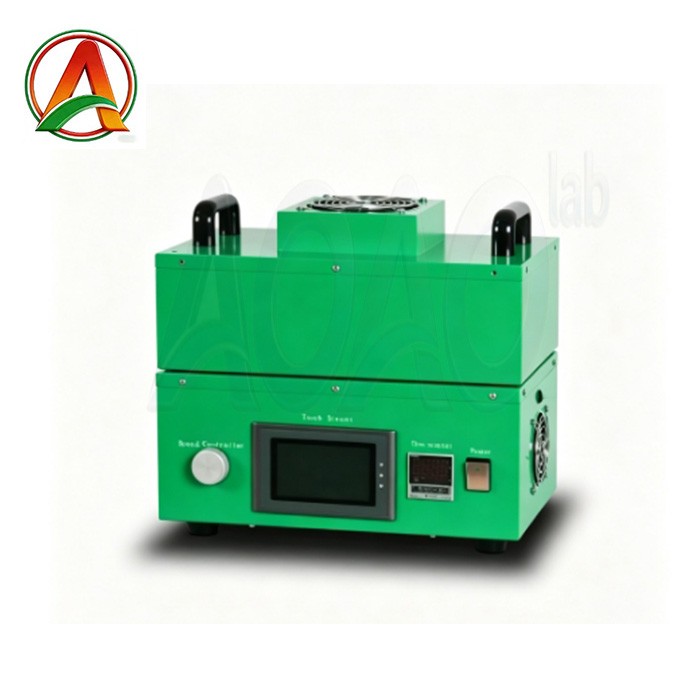

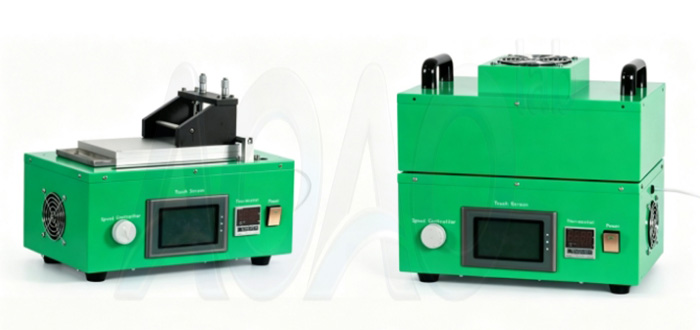

Automatic Small Size Coating Machine

This lab coater is widely used for various high temperature film coating research, such as ceramic film, crystal film, battery material film and special nano film, which can adapt to the development of the film coating scientific technology in high temperature in the future

Brand:AOAO NEW ENERGY
item no.:AOAO-VCH-200
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Automatic Small Size coating machine

Specification

1.Product instruction:

This lab Coater is widely used for various high temperature film coating research, such as ceramic film, crystal film, battery material film and special nano film, which can adapt to the development of the film coating scientific technology in high temperature in the future.

2.Main features:

* Compact size allow the equipment access to the glove box from the transition compartment.

* Large area with uniform heating, ensuring the high accuracy uniform temperature in the chamber.

* Flat-plate coating, motor-driving coating squeegee speed is stable can be adjusted .

* Adjustable coating speed; the copper foil and aluminum foil can be quickly placed or removed from the vacuum aluminum plate; to build in vacuum pump or access to external vacuum source will not make the substrate adsorption deformed; if it’s used in glove box, a external vacuum pump is required.

* Standard film applicator with high accuracy coating precision and adjustable coating thickness.

* It’s space-saving and can be used in glove box, also small and easy to operate.

* With PLC screen, it’s easy to set different parameters.

3.Technical parameters

Model	AOAO-VCH-200
Coating method	Flat-plate coating, standard 100 film applicator, optional squeegee and other measuring device (manual scraping).
Max coating area	L200*w100mm, the coating stroke is step-less set and can be adjusted on the touch screen.
Coating-driving	Motor-driving, coating speed is step-less set and can be adjusted on the touch screen.
Coating speed	0~120mm/s (such as lithium iron phosphate slurry material).
Vacuum plate	With vacuum aluminium flat plate.
Vacuum plate size	L230mmw130mmh30mm.
Adjustable squeegee thickness range	0~5mm adjustable.
Accuracy	±3um, optional digital display 1um micrometer gauge.
Heating and drying system	Indoor temperature~130℃, digital display temperature controller, accuracy±1℃.
With a built-in oil-free vacuum pump
Power supply	220v/50hz.
Power	0.4 kw.
Weight	15 kg.

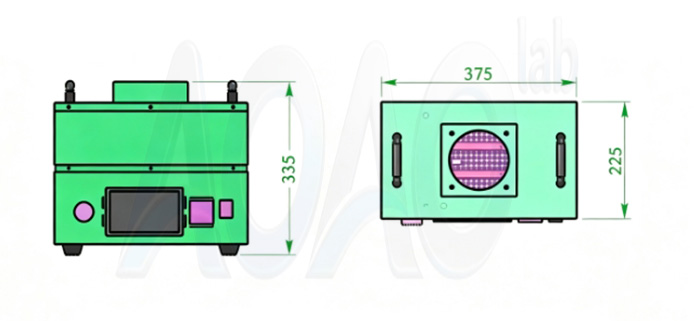

Dimension	L375mmw225mmh190mm.
