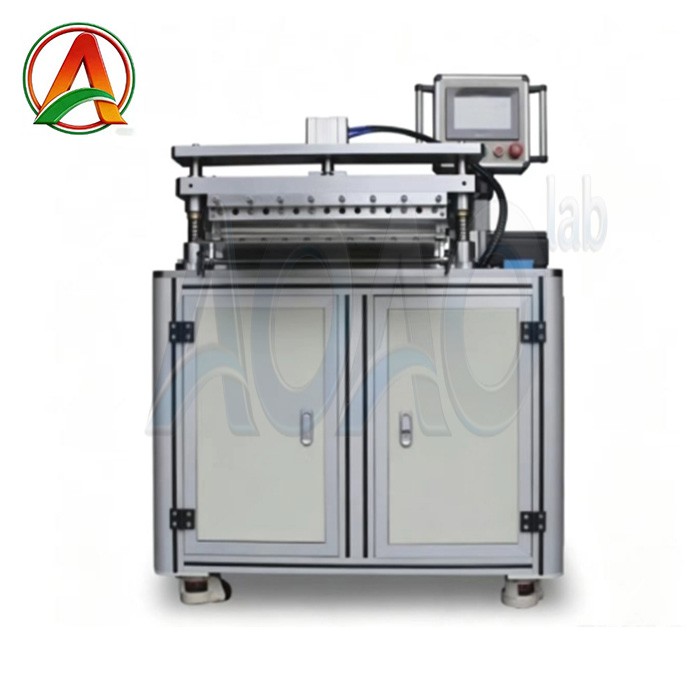

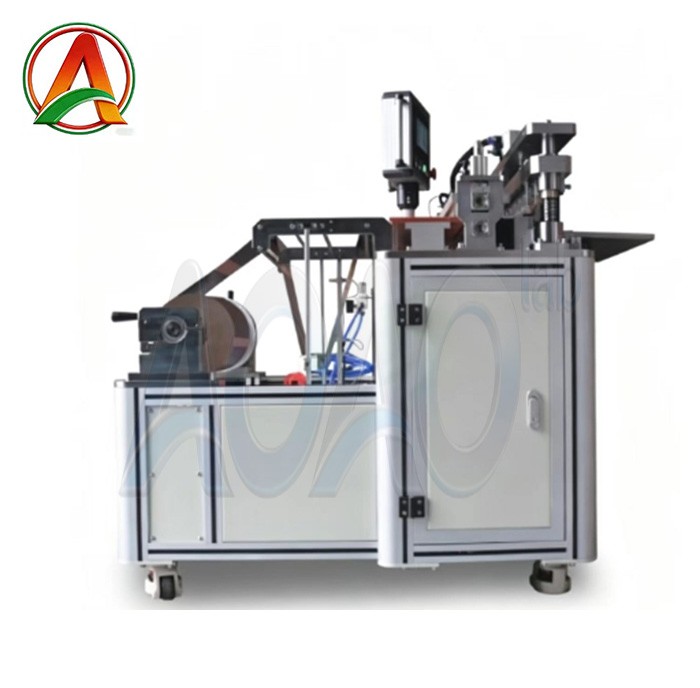

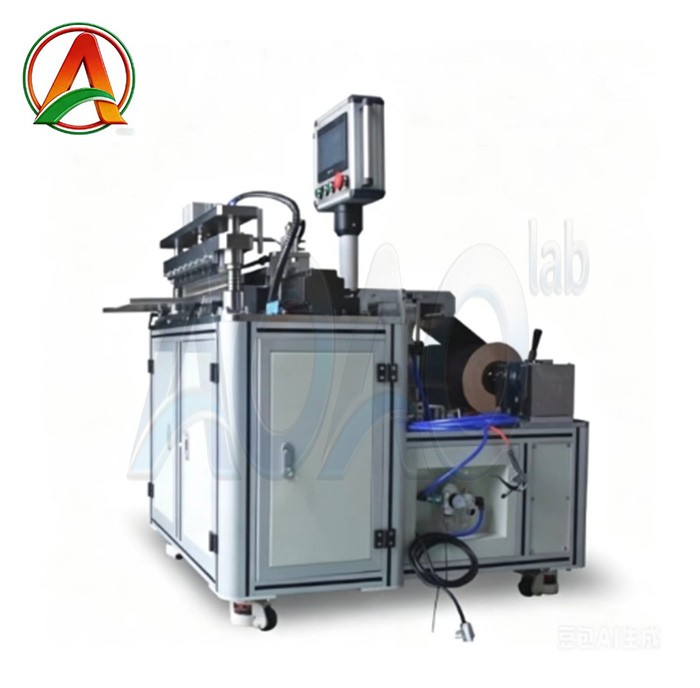

Automatic Shear Cutter Machine For Lithium ion Battery Electrode Cutting

Automatic Shear Cutter Machine For Lithium ion Battery Electrode Cutting

AOAO-CP-500 model battery electrode cutting machine has a 500mm cutting width with set cutting length, the machine is with two kind setting mode

Brand:AOAO NEW ENERGY
item no.:AOAO-CP-500
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Automatic Shear Cutter Machine For Lithium ion Battery Electrode Cutting

SPECIFICATIONS

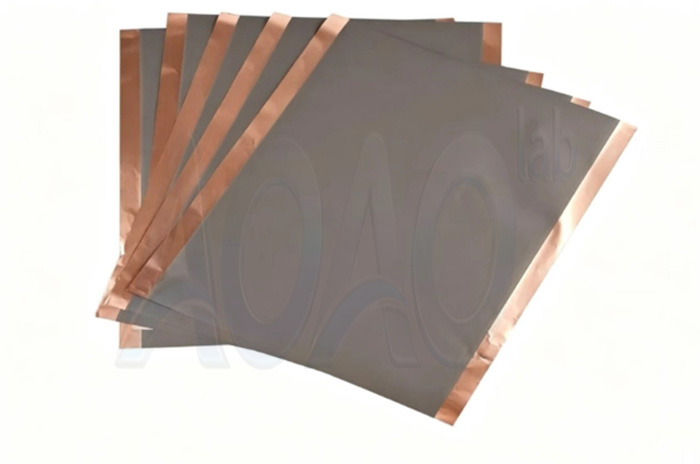

1.The automatic shear cutting machine is used for lithium ion battery big electrode cutting after coating process or after continuous rolling press process. Cutting big electrode is more easy for slitting or punching to small pieces for battery making.

2. This cutter machine can also use for aluminum laminated film cutting.

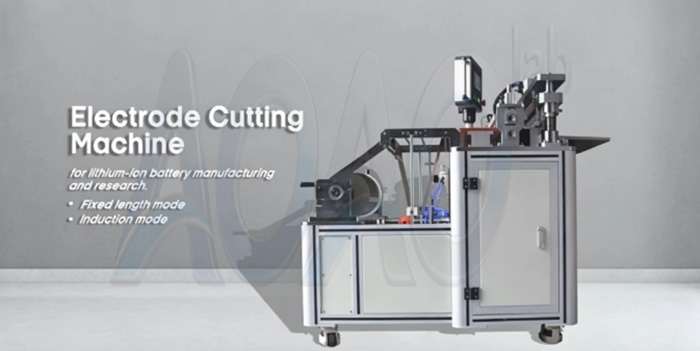

3. AOAO-CP-500 model battery electrode cutting machine has a 500mm cutting width with set cutting length, the machine is with two kind setting mode, the fixed length mode and the induction mode. All the operation can be set from touch screen.

- For the fixed mode, it is mainly used for continuous coating electrode.

- For induction mode, it adopts optical fiber sensing and can be used for gap coated electrode with easy operation.

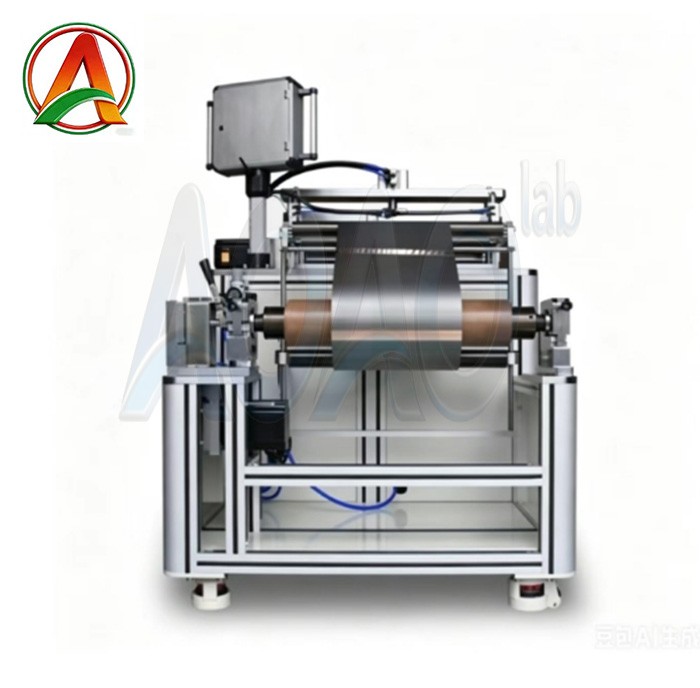

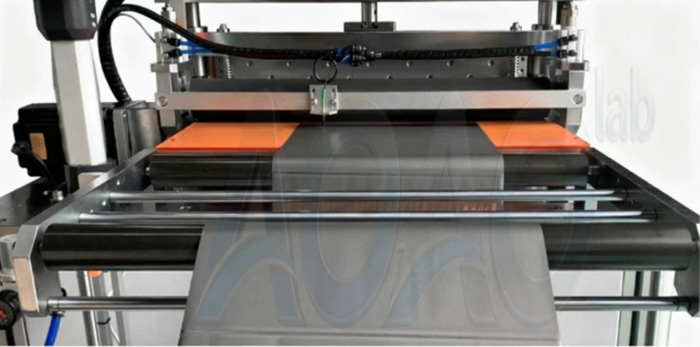

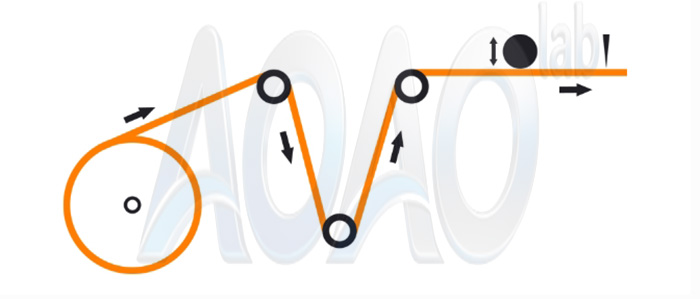

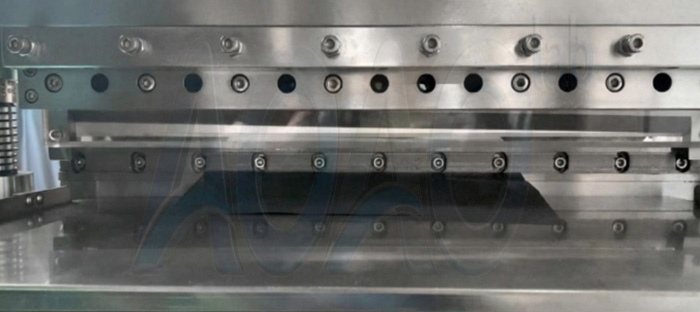

4. The cutting machine is composed by Electrode discharge part, Drive part, Tension Control part, Cutting part and Control touch screen.

Model	AOAO-CP-500
Source voltage	AC 220V/110V, 50HZ/60HZ
Power	1500W
Warranty	One Year limited warranty with lifetime support
Max electrode width	500mm(The cutting length can be arbitrarily set)
Cutting length	0.25-10m(adjustable)
Cutting quantity	1-9999 can be set

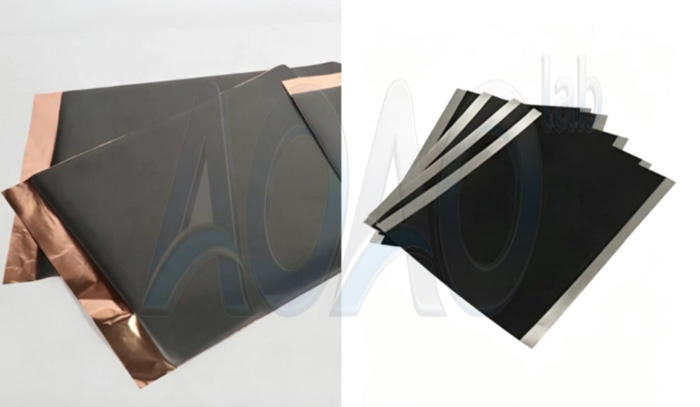

Cutting material	Battery continuous or clearance cathode and anode electrode Aluminum laminated film
Cutting speed	1-8m/min,adjustable
Cutting accuracy	± 0.5mm
Cutting flatness	± 0.5mm
Dimension(LWH)	10609101350mm
Weight	About 380kg
Package size (LWH)	115013001650mm
Package weight	About 430kg
