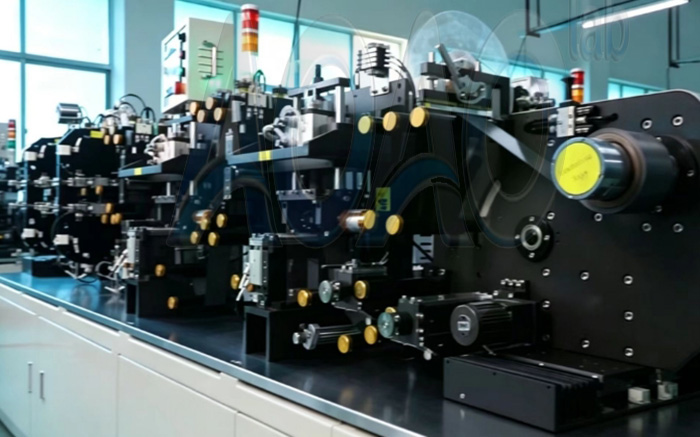

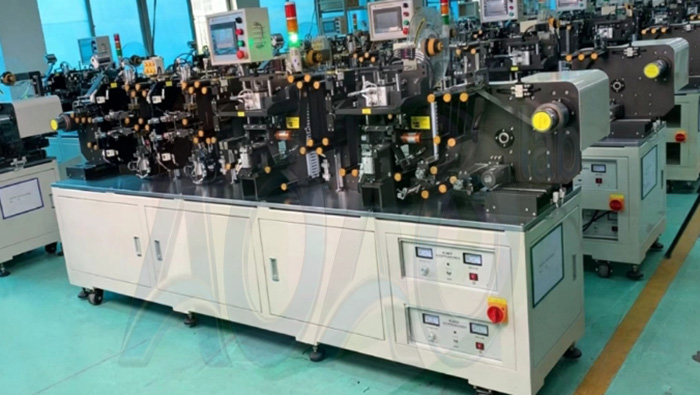

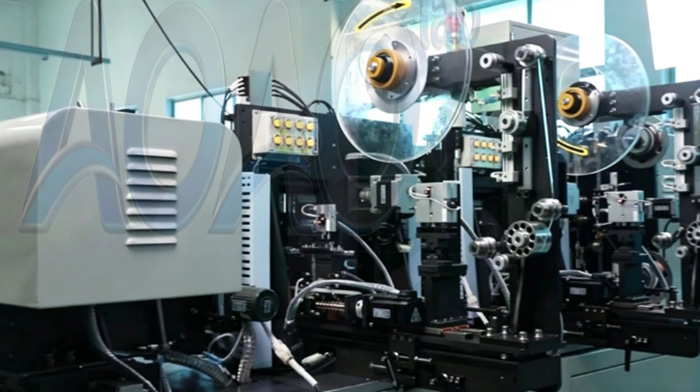

Automatic Lithium Battery Cathode Electrode Making Machine

Automatic Lithium battery Cathode Electrode Making Machine

SPECIFICATIONS

Contact us for more information about this automatic battery electrode making machine ( tab welding, adhesive tape sticking ).

This equipment is a special production equipment for the production of lithium ion batteries .

1.Slitted roll electrode is hung on the unwinding shaft of the equipment, after the tension control, material discharge deviation correction, the over-electrode roller is sent to the tab welding (ultrasonic welding) part for the tab welding, traction to the set position, automatic paste two, after the dust suction device, traction mechanism, the finished single piece of the electrode, automatic wind of the whole roll.

2.The selection of the reference point is to use the starting point of coating on the electrode as the dividing line for positioning, as the reference point of tab welding;The intermediate process of the equipment is the detection of whether the tab is welded, the detection of whether the tape is affixed, etc.Once found that there is no welding or no adhesive tape, you can manually push the switch to return the electrode traction, repair welding, subsidies.make whole roll electrode automatically overwelds the upper tab, automatically sends the electrode, after sticks the protective tape on the electrode and the tab, and automatically harvests the whole roll the finished electrode.

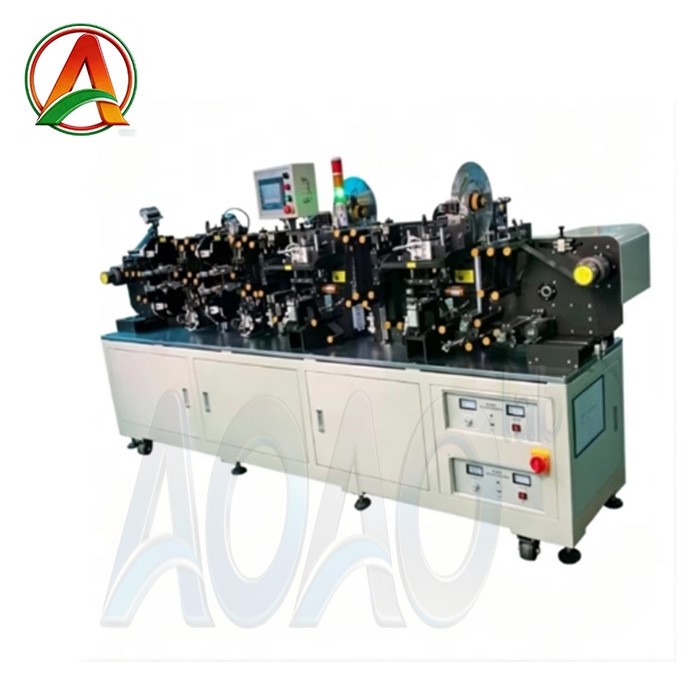

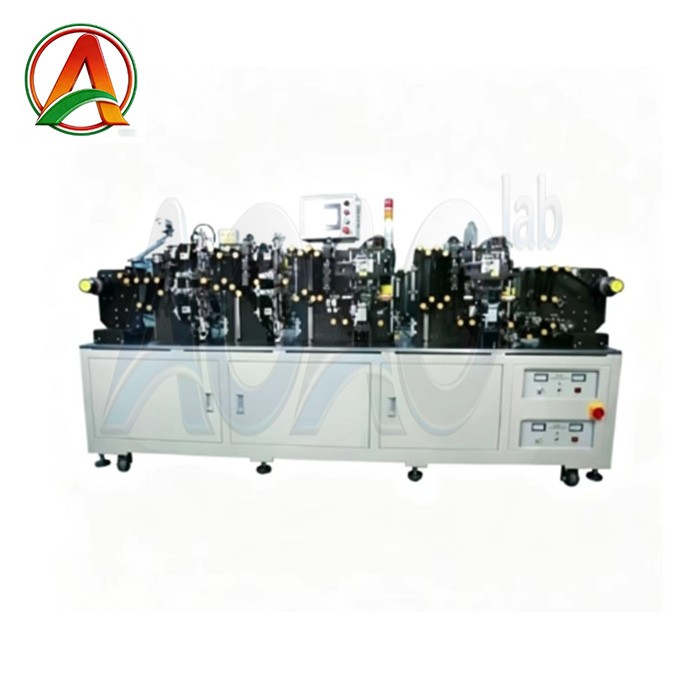

PRODUCT DISPLAY
