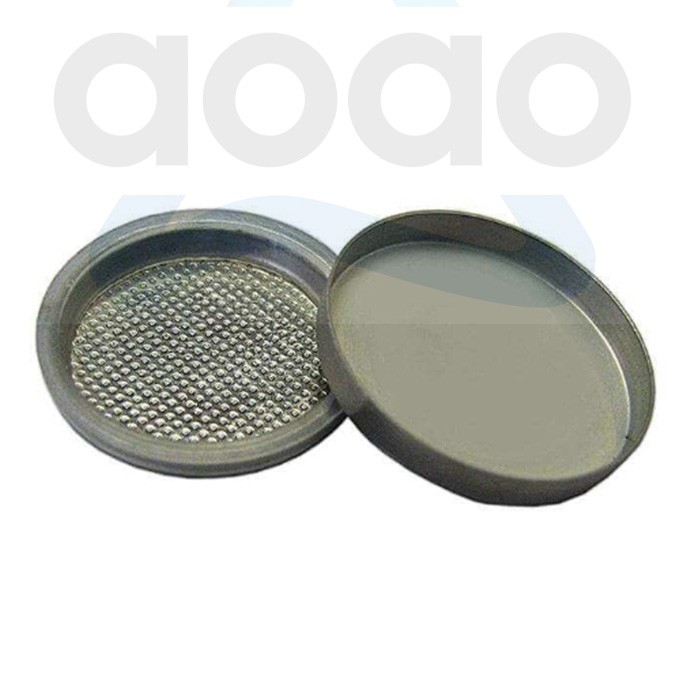

Al-Clad CR2032 Coin Cell Case For Li-Ion Battery

Model Number:AOAO-Al C
Compliance:CE Certified
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Delivery Time:2 days

Al-Clad CR2032 Coin Cell Case for Li-ion Battery

Specifications

Material

Stainless Steel 304 with the Aluminum coat:

· Aluminum-Clad on inside of the POSITIVE case (bottom part, larger, connects to the Cathode with Al Current Collector), to prevent electrolyte from reacting with steel during high voltage charging > 4.5V.

· Negative case (top part with insulating O-ring, smaller, connects to Anode with Cu Current Collector ): made of SS304, you may need to put Spring/Spacer in between this case and anode.

· Sealing Gasket: PP

Dimensions (Dia x Height)

20mm x 3.2mm

Other coin cell type:

Name	Model/Size	Material
Coin cell case	CR2032	304ss/316ss/Gold-Coated/Al-Coated/ Kapton
	CR2016	304ss/316ss/ Kapton
	CR2025	304ss/316ss
	CR2450	304ss
	CR2430	304ss/316ss
	CR2325	304ss
	CR1620	304ss
	CR1632	T:3.2mm D:16mm 304ss
	CR1616	304ss
	CR1220	304ss
	CR1820	304ss
	CR0927	304ss
	CR1220	304SS
	CR1025	304SS
	CR1016	304SS
	CR3048	304SS
	CR3032	304SS
	CR2477	304ss
	CR2032 Lithium air case	304ss
Coin cell spacer	15.8*0.2mm	304ss/316ss
	15.8*0.5mm	304ss/316ss/Pure aluminum
	15.8*0.8mm	304ss/316ss
	15.8*1mm	304ss/316ss
	20.2*0.4mm	304ss
Wave Sprin (Belleville Washers)	15.4O.D10.5 I.D1.0Height*0.25 Thickness mm	304ss/316ss
Wave Sprin (Belleville Washers)	15.4O.D10.5 I.D1.0Height*0.25 Thickness mm	304ss/316ss
Coin Cell Conical Spring	15.4 mm dia * 1.1 mm height *0.25 mm thickness	304ss/316ss
Coin Cell Conical Spring	20*1.7mm	304ss
