Zinc-Air Battery Testing Device with Electrolyte Circulation

Brand:AOAO NEW ENERGY
item no.:AOAO-OMS-TR
order(moq):1
Payment:L/C, T/T
price range:350 - 500/$1
product origin:China
shipping port:XIAMEN

Zinc-Air Battery Testing Device with Electrolyte Circulation

Product Overview

The AOAO-OMS-TR Zinc-Air Battery Testing Device is a transparent electrochemical testing platform designed for laboratory research on zinc-air battery systems. The device integrates a sealed reaction chamber with an external Electrolyte circulation system, enabling stable and repeatable evaluation of air electrode performance, electrolyte behavior, and polarization characteristics.

Constructed from high-transparency acrylic, the system allows direct observation of internal reactions. The built-in O-ring sealing structure ensures reliable airtightness, while the modular design supports different reaction areas and flow rate configurations, making it suitable for both low-current and high-current testing conditions.

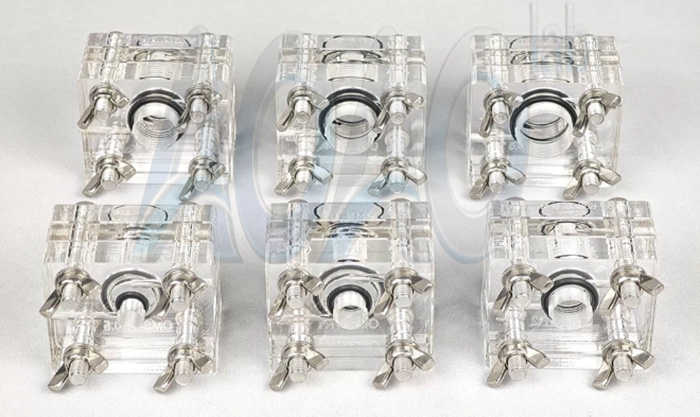

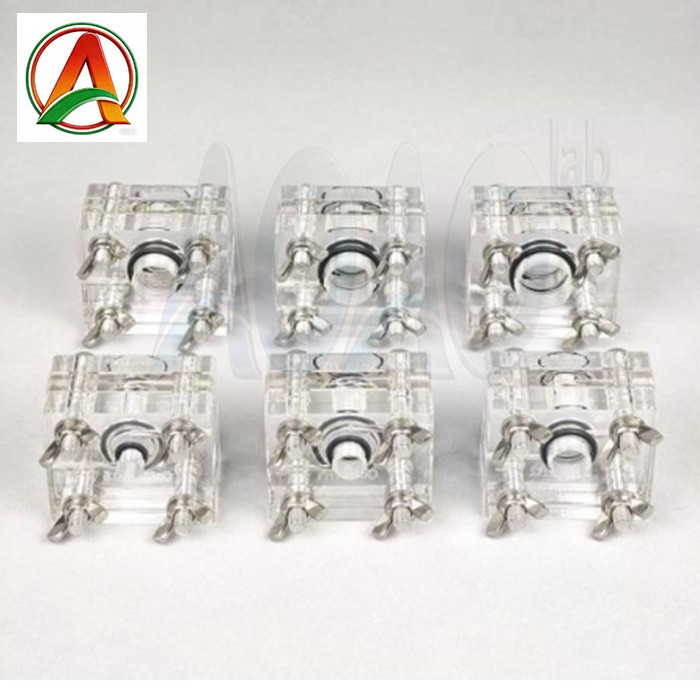

Model & Configuration Options

Model	Flow Rate Range	Reaction Area
AOAO-OMS-TR0.5	3–10 ml / 20–65 ml	0.5 cm²
AOAO-OMS-TR1	3–10 ml / 20–65 ml	1 cm²
AOAO-OMS-TR2	3–10 ml / 20–65 ml	2 cm²
AOAO-OMS-TR3	3–10 ml / 20–65 ml	3 cm²
AOAO-OMS-TR4	3–10 ml / 20–65 ml	4 cm²
AOAO-OMS-TR4.5	3–10 ml / 20–65 ml	4.5 cm²

Note:Please specify oxygen tube specifications when ordering.

Technical Specifications

Parameter	Value	Remarks
Material	Acrylic (PMMA)	Transparent structure
Device Size (W × H)	7 × 6 cm	Standard configuration
Electrodedistance	1.4 cm	Fixed spacing
Reaction Area	0.5–4.5 cm²	Depends on model
Gas Connector Size	6 / 8 / 10 mm	Oxygen compatible
Electrolyte Capacity	100 / 250 / 500 ml	Default: 500 ml bottle

Reaction Area Details

• TR0.5: Cathode 0.5 cm² / Anode 3 cm²

• TR1: Cathode 1 cm² / Anode 4.5 cm²

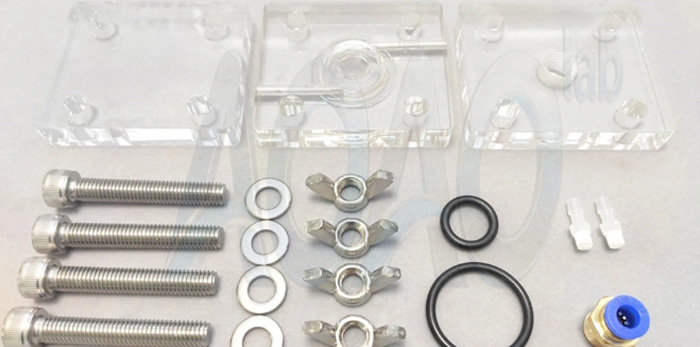

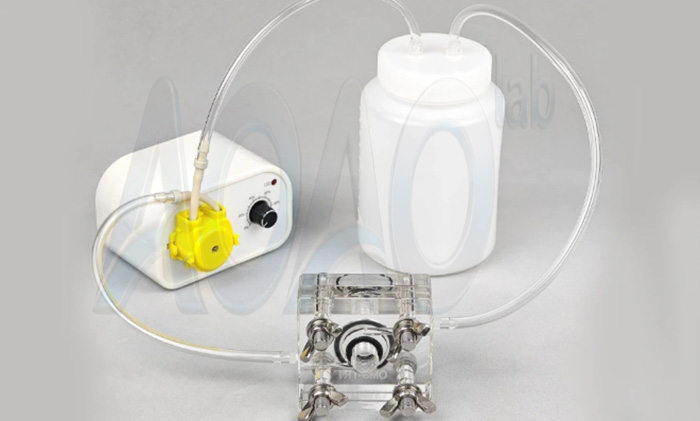

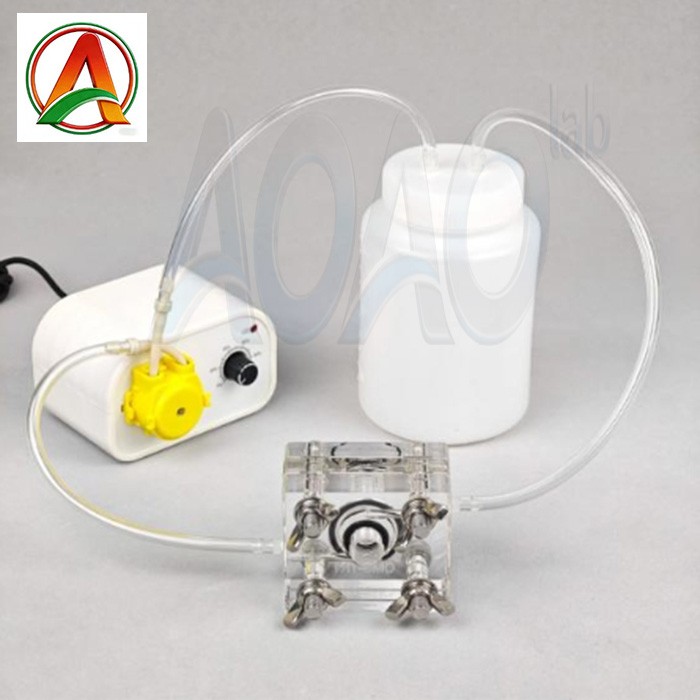

System Components

Main Unit
• Acrylic test cell (without pump bottle, model must be specified)

Optional Accessories

• Circulation pump (blue): 3–10 ml/min

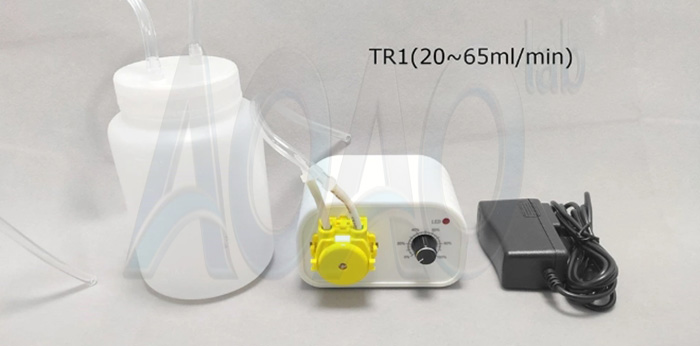

• Circulation pump (yellow): 20–65 ml/min
• Electrolyte storage bottle: 500 ml / 250 ml
• Tubing: 4 × 6 mm (ID × OD)
• Pipe connectors: M5 φ3.8
• One pair of yellow plastic plugs - M5
• Sealing O-rings (custom sizes)
• Display panel (1–5V standard)
• Acrylic plates (custom specifications)

Application Scenarios

This testing device is suitable for:

• Zinc-air battery performance evaluation
• Air cathode research and optimization
• Electrolyte circulation studies
• High current discharge behavior analysis
• Metal-air battery laboratory development
