Transparent Acrylic & Plexiglass Vacuum Glove Box (35
Model Number:AOAO-15B
Dimension(L*W*H):1000*500*500mm
Net Weight:85kg
Compliance:CE Certified
Warranty:One years limited warranty with lifetime technical
Payment:L/C D/A D/P T/T Western Union
Delivery Time:5 days

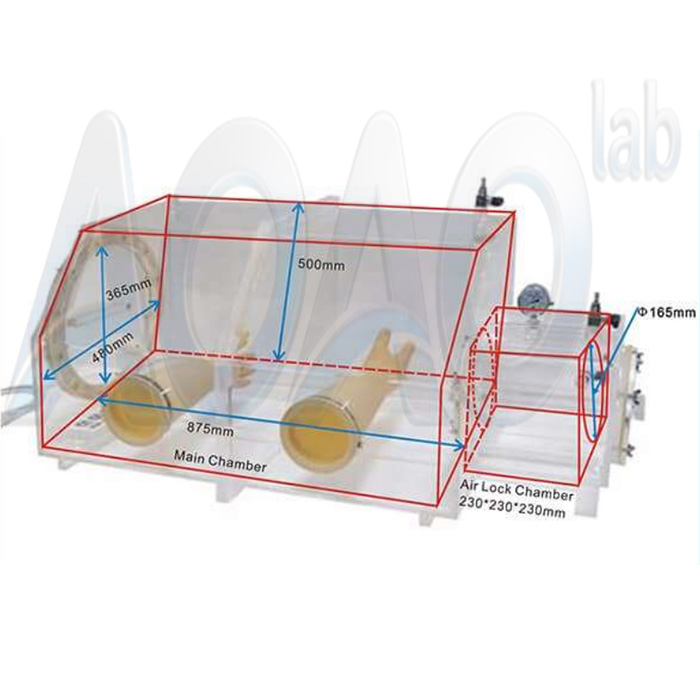

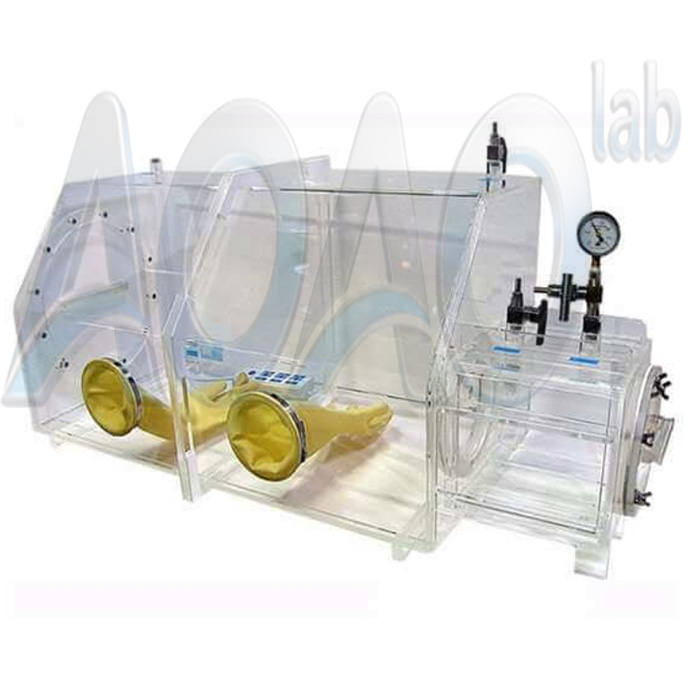

Transparent Acrylic & Plexiglass Vacuum Glove Box (35"x19"x20") with Optional Vacuum Flange & Gauge
It is mainly composed of main box, transit room and side door. If user has special requirement, it can also be customized and designed according to customer needs. There are 2 glove interfaces. In front of the main Vacuum Glove Box ,user can clearly view the box inner situation. There are two vacuum ball valves and one vacuum gauge on the right of the main box. And there are also two vacuum ball valves and one vacuum gauge on the transit room. It can be used according to user needs. The ball valve can be connected with water faucet when needing water or ventilation. Light bulb can be also installed. Transit room means the transition between the main box and outdoor, composed by two sealed doors, two vacuum ball valves and one room. Two doors isolate the main box from connecting with the outdoor, making material putting in and taking out for lab easily.
Main Parameters of Transparent Glove Box | ||||||
No. | Model No. | Box Size | Material | Glass Thickness | Size of Transition Cabinet | Remarks |
1 | AOAO-10A | 740*450*500 | Organic Glass | 10 | No Transition Cabinet | Isolated from dust, no vacuum |
2 | AOAO-15A | 740*450*500 | 15 | 240*240*240 | Slight vacuum can be pumped, water or oxygen removal system is for option. | |
3 | AOAO-30A | 740*450*500 | 30 | 240*240*240 | Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal | |
4 | AOAO-10B | 1000*500*500 | 10 | No Transition Cabinet | Isolated from dust, no vacuum | |
5 | AOAO-15B | 1000*500*500 | 15 | 240*240*240 | Slight vacuum can be pumped, water or oxygen removal system is for option. | |
6 | AOAO-30B | 1000*500*500 | 30 | 240*240*240 | Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal | |
7 | AOAO-10C | 1200*600*600 | 10 | No Transition Cabinet | Isolated from dust, no vacuum | |
8 | AOAO-15C | 1200*600*600 | 15 | 240*240*240 | Slight vacuum can be pumped, water or oxygen removal system is for option. | |
9 | AOAO-30C | 1200*600*600 | 30 | 240*240*240 | Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal | |
10 | AOAO-10D | 1200*800*700 | 10 | No Transition Cabinet | Isolated from dust, no vacuum | |
11 | AOAO-15D | 1200*800*700 | 15 | 240*240*240 | Slight vacuum can be pumped, water or oxygen removal system is for option. | |
12 | AOAO-30D | 1200*800*700 | 30 | 240*240*240 | Pump vacuum to -0.1MPA, can be replaced with water and oxygen removal | |
