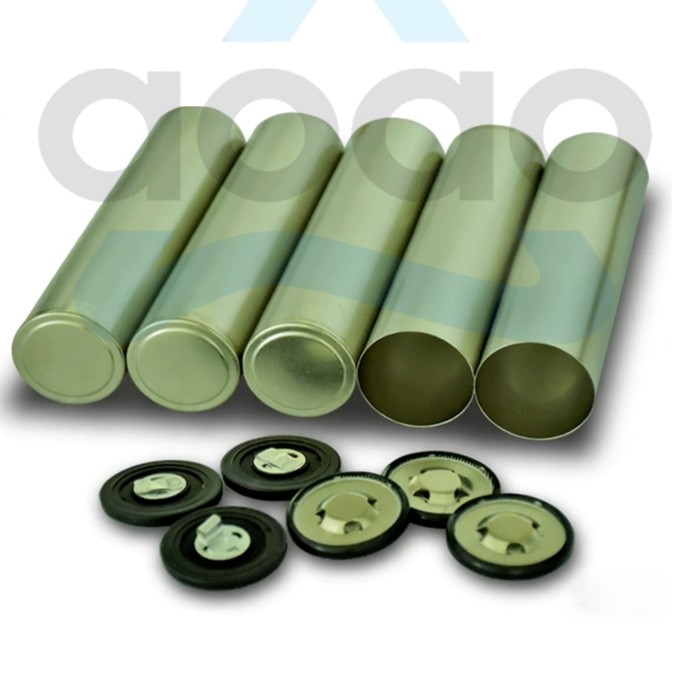

Stainless 32140 Cell Cans
Brand:AOAO NEW ENERGY
Item No.:AOAO-32140-C
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Product Origin:China
Shipping Port:XIAMEN
Stainless 32140 Cell Cans
AOAO New Energy can provide all kinds of cylindrical stainless steel and aluminum case for cylindrical cell 18650, 26650, 21700, 32700,
Model: AOAO-32140-C
MOQ: 500sets
Material | Battery Steel | |||||
Main Dimension | Item(mm) | Min | Max | Item(mm) | Min | Max |
External diameter Φ33.0±0.05 | 32.95 | 33.05 | Internal diameter Φ32.4±0.05 | 32.35 | 32.45 | |
Cylinder wall thickness 0.30(±0.05,0) | 0.30 | 0.35 | Total height 144±0.1 | 143.9 | 144.1 | |
Bottom wall thickness 0.50 | 0.50 | Thickness of plating layer in the middle of the shell≥2.5um | 2.5um | - | ||
Bottom diameter Φ25.0±0.05 | 24.95 | 25.05 | Bottom diameter height 0.15 | 0.15 | ||
