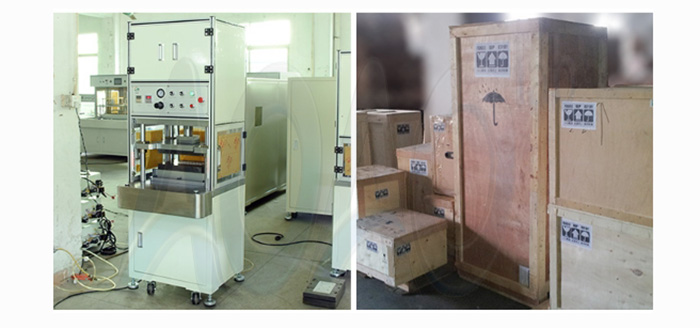

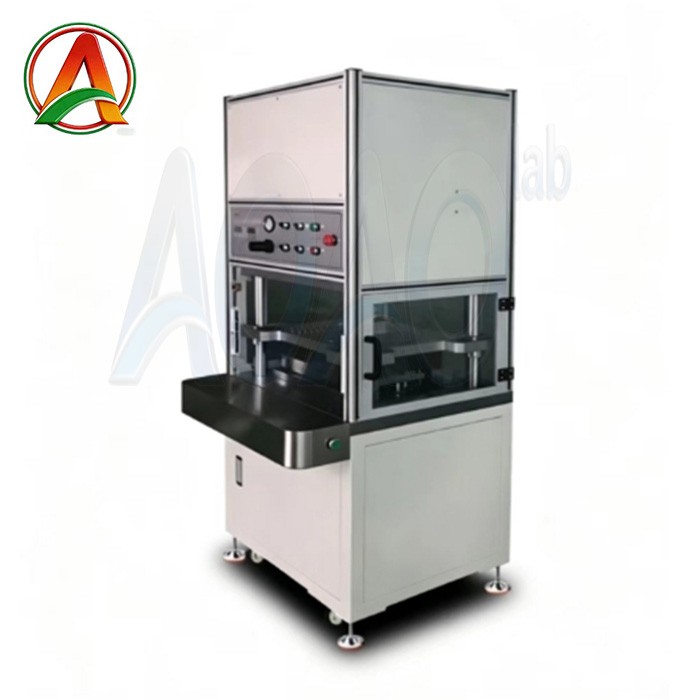

Solid State Battery Case Aluminum Laminated Film Forming Machine

Brand:AOAO NEW ENERGY
item no.:AOAO-SCX-500
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Solid State Battery Case Aluminum Laminated Film Forming Machine

SPECIFICATIONS

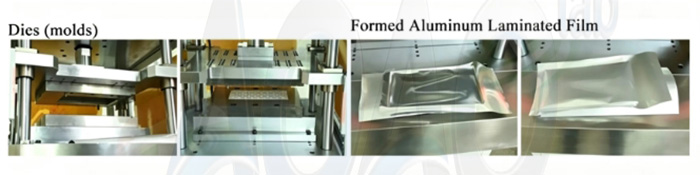

1. This Solid State Battery Case Forming Machine is suitable for the solid state pouch battery aluminum laminated film case forming. The machine has simple structure and easy operation. During operation, put the cut aluminum laminated film sheet into the mold, press the start button with both hands, the mold closes, release the button, the mold opens, the stretching of the aluminum laminated film is completed.

2. The stretched shape of the aluminum laminated film is determined by the mold, and the depth is adjustable from 1 to 30 mm.

3. 15 tons of gas-liquid pressurized cylinder (pressure according to customer requirements)

Technical parameter

Gas-liquid pressurized cylinder	Sento/Koje
Lower cylinder	JLBL
Main steel components	use 45# steel, electroplating treatment
Thickness of upper and lower platform	58mm
Movable board thickness	48mm
Effective aluminum laminated film area	500*400mm
Parallelism of upper and lower platform	≤0.15mm
Machine air pressure operation cycle	Less than 4 s
Power supply	AC220V/50HZ
Power	0.2KW
Equipment weight	About 1.6 tons
Equipment size	870mm670mm2000mm, LWH
Safety light curtain, dual button start and foolproof device are all protected together
