Sodium-Ion Battery Tab Ultrasonic Metal Spot Welder

Model Number:AOAO-VS-40A
Input Power:2000W
Compliance:CE Certified
Warranty:One years limited warranty with lifetime technical support
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Delivery Time:5 days

Sodium-Ion Battery Tab Ultrasonic Metal Spot Welder

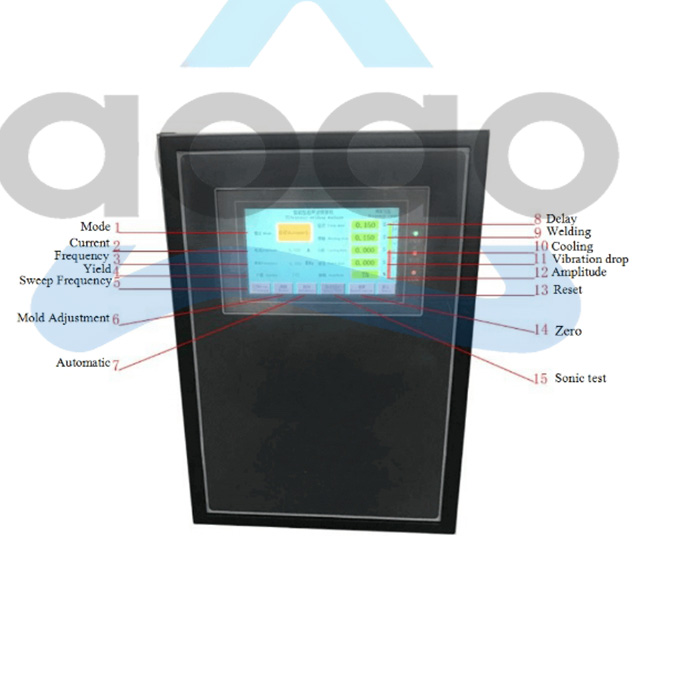

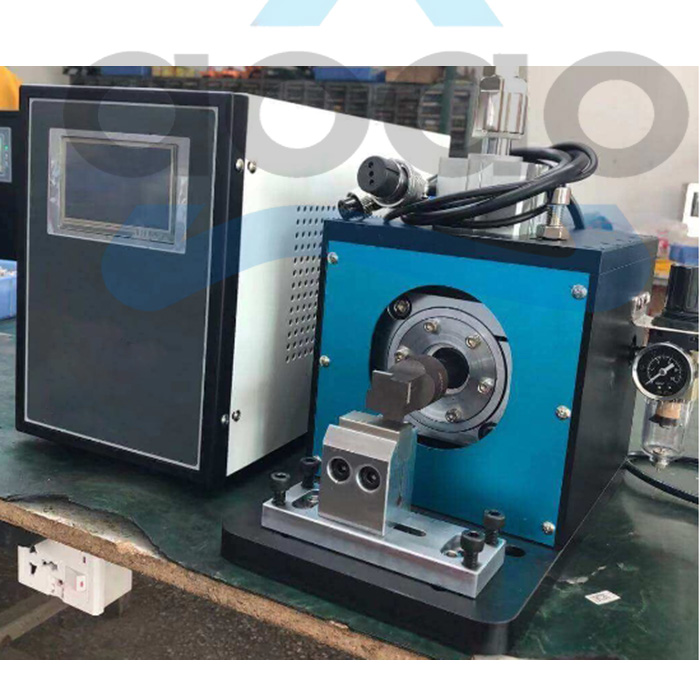

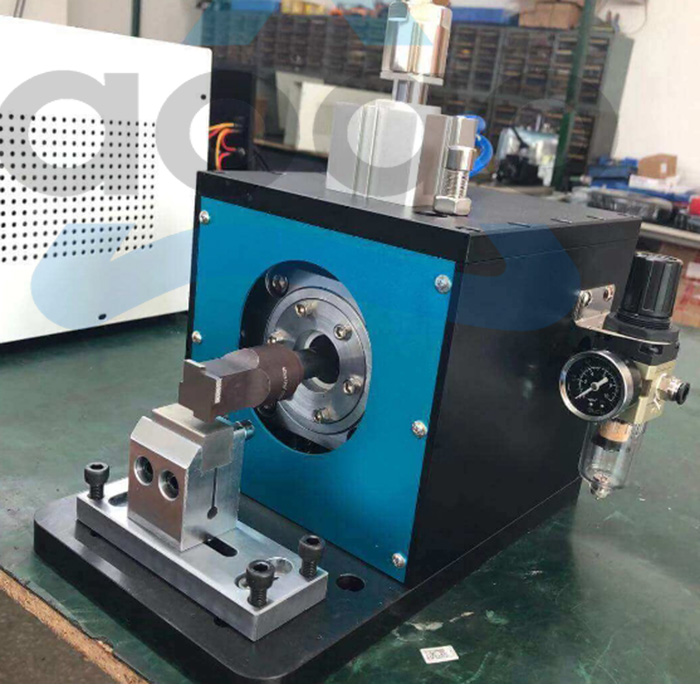

AOAO-VS-40A is a CE Certified ultrasonic metal welder with touch-screen controller. It is designed for welding stacked electrode foils/sheets and tabs onto current collectors to prepare Li-ion pouch cells & cylindrical cells.

The 2000w battery welder can weld stacked electrode with 10-35 layers aluminum foil or copper foil with Al tab and Nickel tab.

Note:If you are not quite clear about what welder would be suitable for you,please consult the sales manager with following parameters,they will find a solution for you:

1. Weld material
2. Thickness of the material

3. Layer number of material

Specifications

Features	Preset welding programs selectable for Al and Cu (Note: Welding power can be readjusted to fit the needs for welding other types of metals such as Au, Fe, Ni, Ag...).
Input Voltage	AC 110V or 220V +/-10%, 50/60Hz
Max. Power Consumption	2000W→can be customized
Welding Area	4mm(L) x 4mm(W)→can be customized
Welding Head	The welding heads and welding base are included for welding both aluminum & copper current collectors from 2 to 25 layers
Ultrasonic Frequency	40K Hz→can be customized
Product Dimensions	1. Controller: 360mm(L) x 480mm(W) x 200mm(H) 2. Welder: 200mm(L) x 460mm(W) x 270mm(H)
Net Weight	70kg
Compliance	CE Certificate
Warranty	One Year limited warranty with lifetime support
