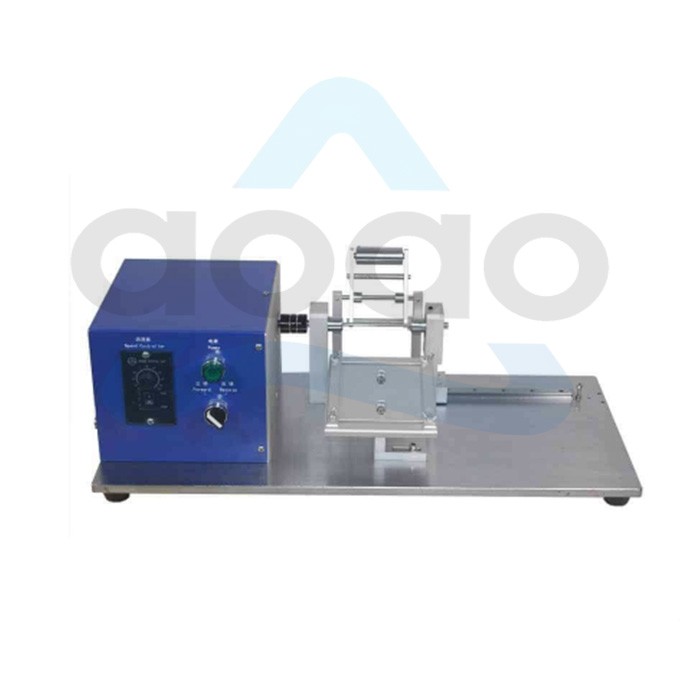

Sodium Ion Battery Manual Winding Machine

Model Number:AOAO-JR135
Input Power:40W
Net Weight:About 20kg (45 lbs)
Compliance:CE Certified
Warranty:2 years
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Delivery Time:5 days

Sodium Ion Battery Manual Winding Machine

1. Product introduction:

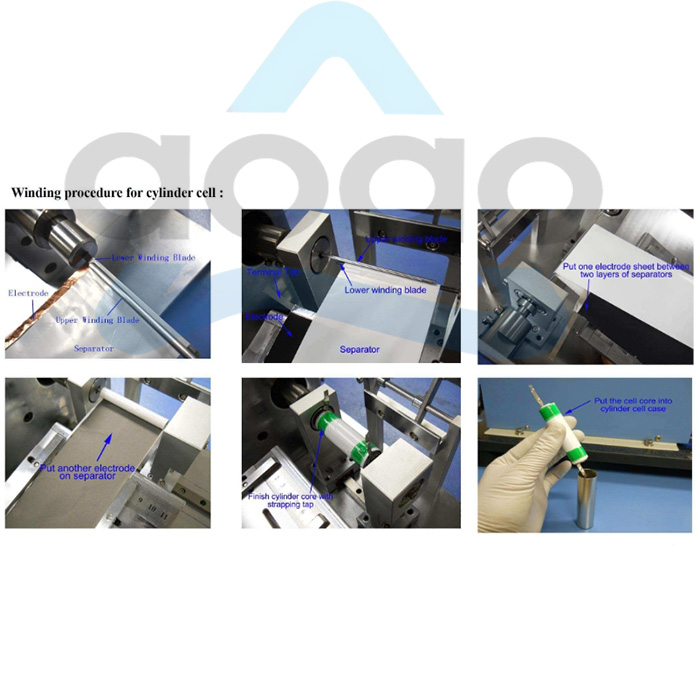

This winding machine is used for winding battery anode/cathode electrodes with separator together in the research of Li-ion cylinder batteries.

2. Main features:

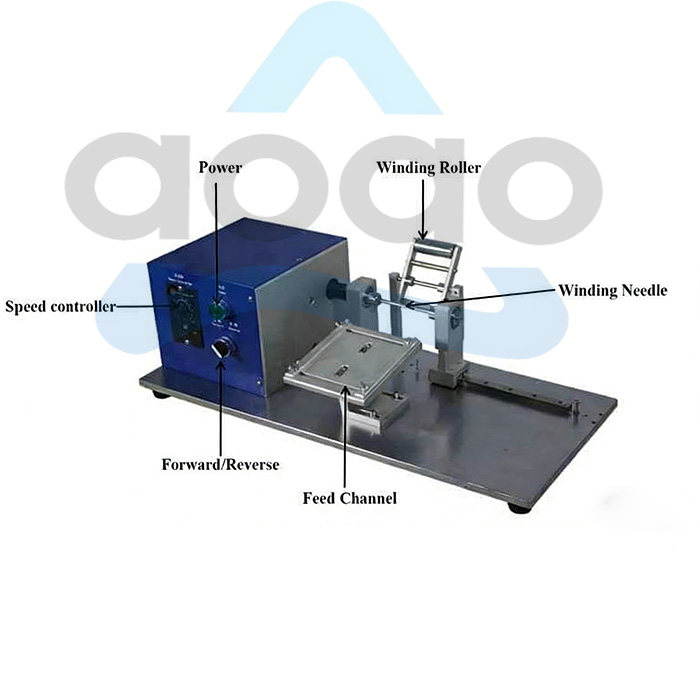

*The up and down, left and right, front and back positions of the guide electrode slot ruler plate can be adjusted;

*Winding can be forward and reverse, winding stepless speed regulation;

*The machine is small in size, beautiful in appearance and easy to operate;

3. Specifications:

Model	Semi-Automatic Winding Machine AOAO-JR135
Winding Shaft	· Dimensions: 4mm(OD) x 90mm(L) for 18650, 26650, 32650, 21700 cylinder battery jelly roll · Material： 45# steel with Cr plated ( all shinning parts ) for anti-crossion.
Working Voltage	AC110V/220V, 50/60HZ
Power	1000W
Warranty	Two Year limited warranty with lifetime support
Winding Speed	0 - 170 RPM Adjustable
Suitable battery height	10-150mm customized
Winding Mode	Switchable between clockwise and counterclockwise
Output	70-100EA/h, according to battery size and maunal
Product Dimensions (LWH)	1000380250mm
Net weight	About 30kg
Application Notes	This machine can be used for cylinder battery with round winding shaft, and you can also choose the square winding shaft for pouch cell core winding, We will supply with the suitable winding accessories according to your battery model.
