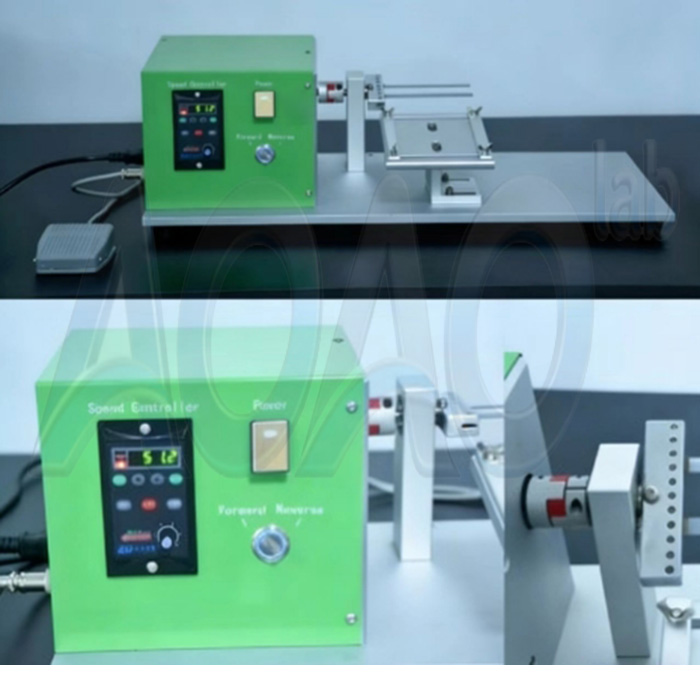

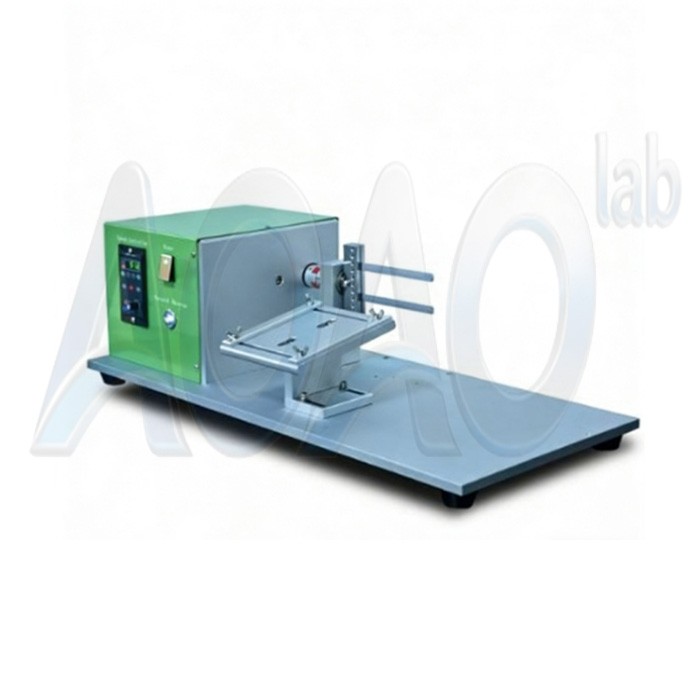

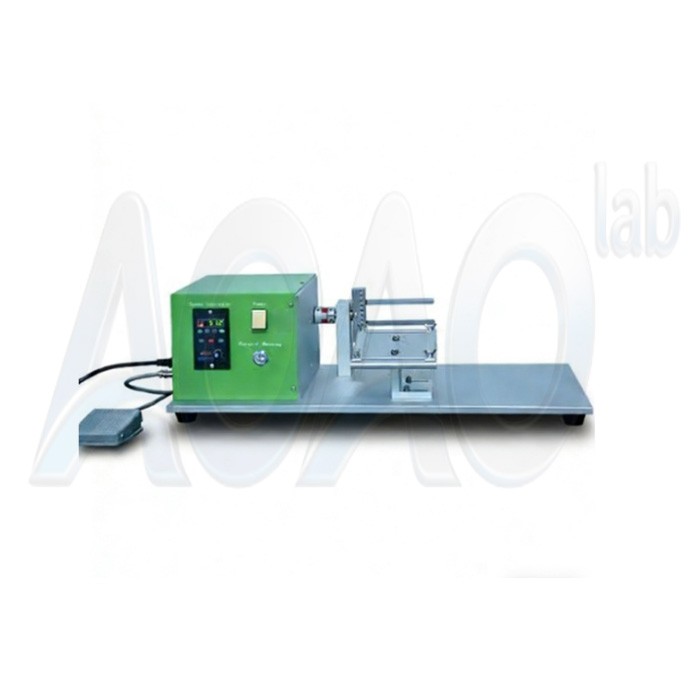

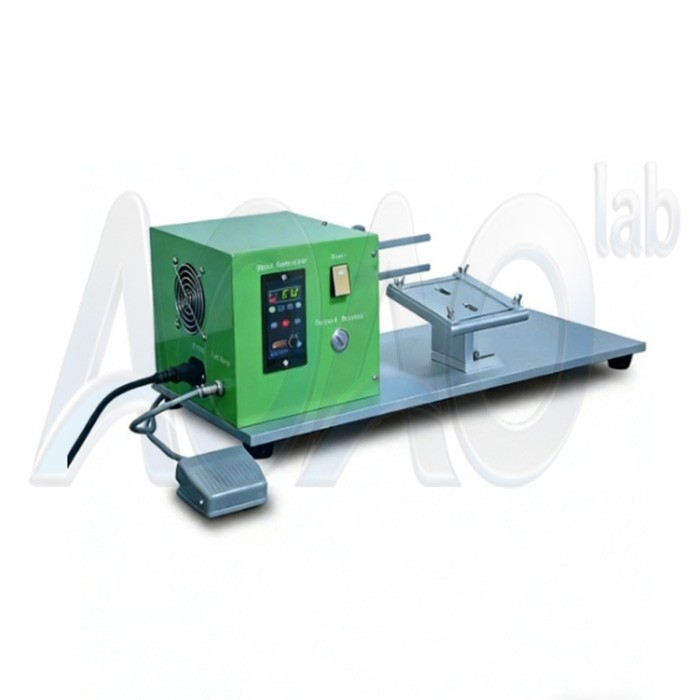

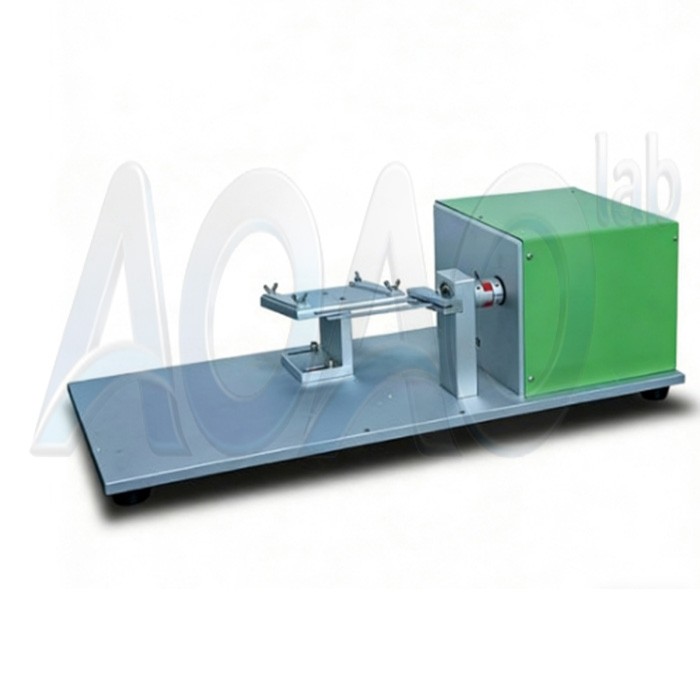

Semi-Automatic Winding Machine For Pouch Cell

Semi-Automatic Winding Machine For Pouch Cell

Brand:AOAO NEW ENERGY
Item No.:AOAO-JR135-P
Order(Moq):1set
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN
Lead Time:7days

Semi-Automatic Winding Machine For Pouch Cell

SPECIFICATIONS

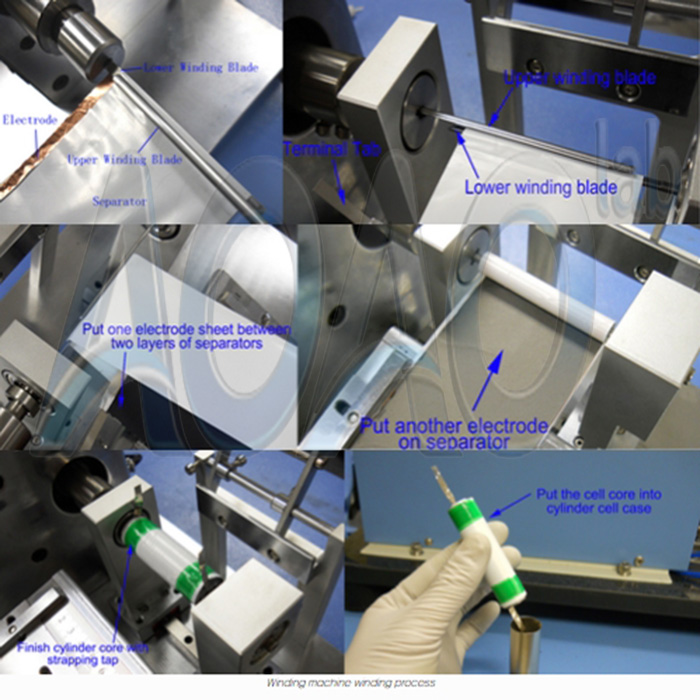

AOAO-JR135-Prismatic semi-automatic winder machineis used for winding battery anode/cathode electrodes with separator together in the research of Li-ion Pouch cell batteries.

Model	Semi-Automatic Winding Machine AOAO-JR135-P
Working Voltage	AC110V/220V, 50/60HZ
Power	40W
Warranty	One Year limited warranty with lifetime support
Winding Speed	0 - 170 RPM Adjustable
Winding blade	The winding width depends on the width of the winding blade Customized square winding blade according to battery model
Winding Mode	Switchable between clockwise and counterclockwise
Output	70-100EA/h, according to battery size and maunal
Product Dimensions (LWH)	360310280mm
Net weight	About 20kg (45 lbs)
Application Notes	This machine can be used for prismatic battery with square winding shaft, and you can also choose the round winding shaft for cylinder cell core winding, We will supply with the suitable winding accessories according to your battery model
