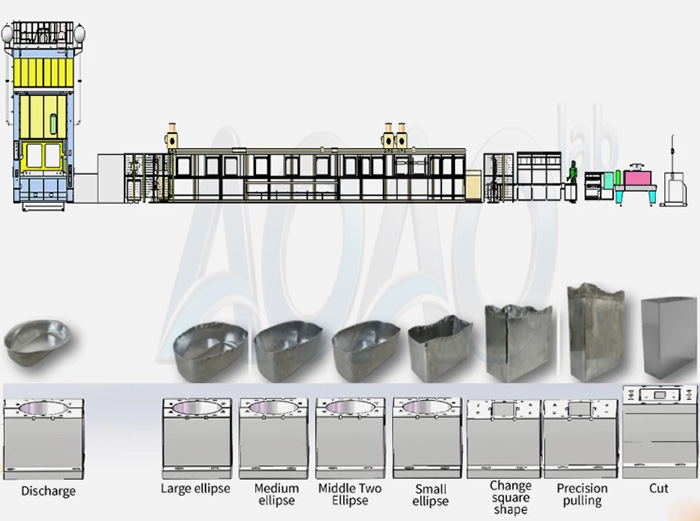

Prismatic Cell Aluminum Case Production Line

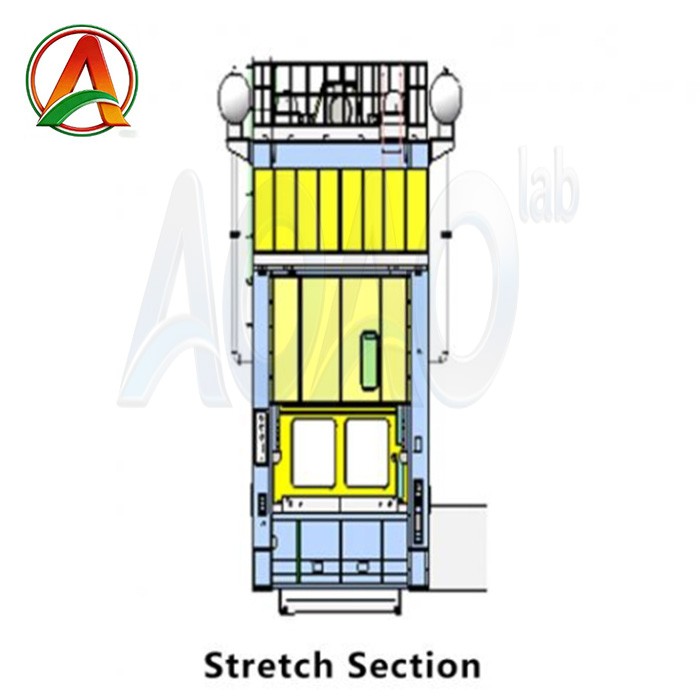

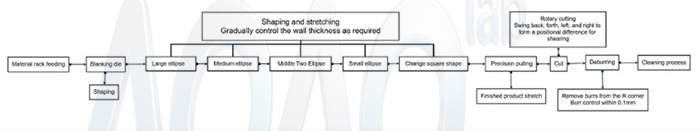

Precision Forming

Multi-stage stretching with strict mold control

Ensures dimensional accuracy

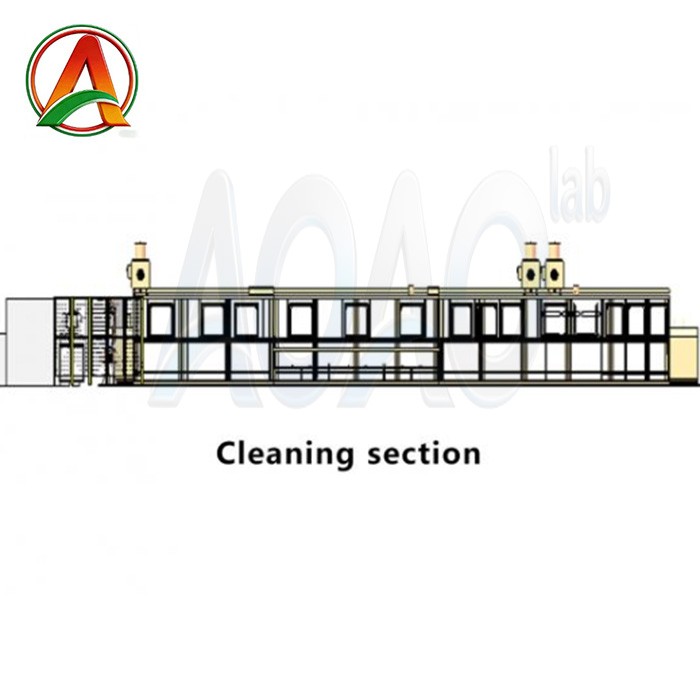

Cleaning Stability

Controlled chemical and filtration system

Guarantees contamination-free surfaces

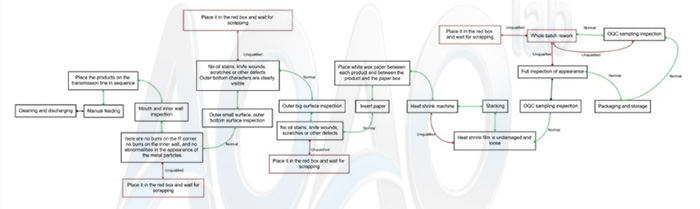

Full Inspection

100% appearance inspection workflow

Eliminates defective product flow

Turnkey Integration

Complete line from forming to packaging

Improves efficiency and reduces labor

Equipment Cleaning

Punch/die cleaned every 2 hours

Prevent debris defects

Oil Management

Filter cleaned daily, oil replaced weekly

Maintain forming stability

Restart Control

First 20 pieces scrapped after >30 min stop

Ensure process consistency

Inspection Frequency

Self-check: 15 min; Random check: 30 min

Continuous quality monitoring

Maintenance Cycle

Every 1.3 million cycles

Maintenance Scope

Cutting die, ellipse stages, final shaping

Objective

Ensure dimensional tolerance stability

Loading/Unloading Handling

Prevent scratches and deformation

Appearance Recognition

Identify surface defects

Independent Operation

Ensure stable manual operation

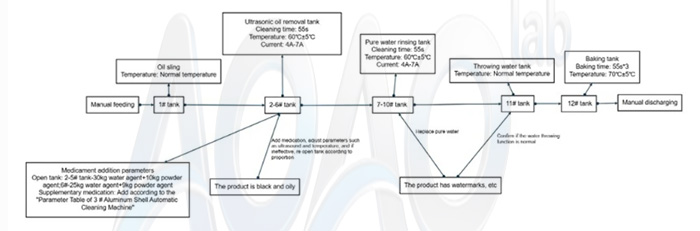

Tank Preparation

Auxiliary tank emptied before dosing

Avoid contamination

Water Ratio

10% clean water added to main tank

Stabilize chemical mixing

Reagent Addition

Every 100,000 pcs

Maintain cleaning effectiveness

Filter Maintenance

Cleaned daily after QC confirmation

Ensure filtration performance

Appearance Check

Every 15 minutes

Training

Conducted by senior staff

Assessment

Mandatory before independent work

Certification

Required for inspection tasks

Training

Quality engineers train inspection personnel

Identification

Abnormal products distributed for recognition

Rework

Defective batches reprocessed

Verification

IQC random inspection before storage

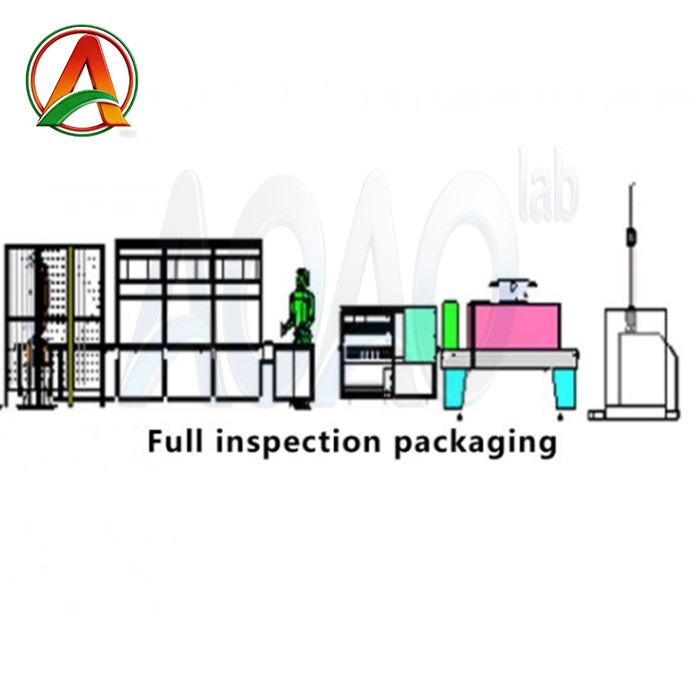

Heat Shrink Packaging

Protection, cleanliness, transport safety

39148103

Prismatic case

52148103

Prismatic case

54173204

Prismatic case

731173204

Prismatic case
