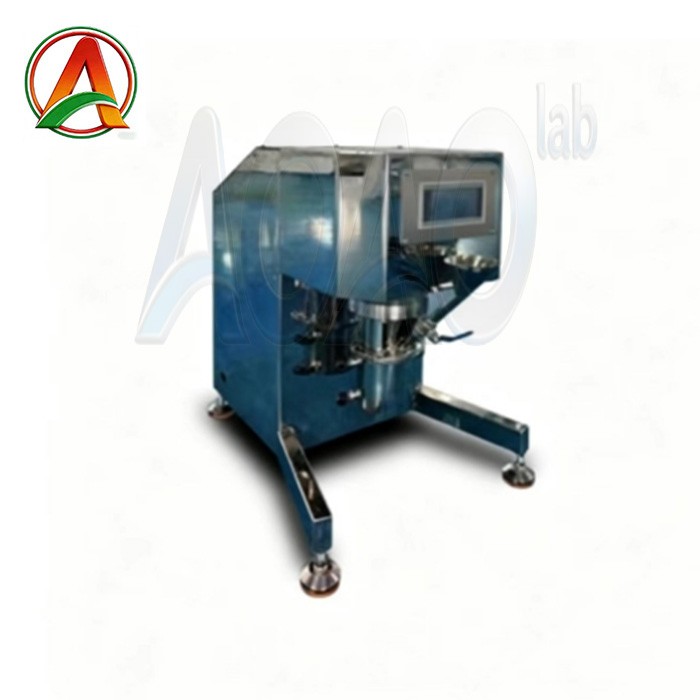

Nano Pin Sand Mill Machine
The AOAO-KNL-0.1L of nano vertical sand mills is a specially designed vertical grinding system. It features strong shear force and high grinding efficiency
Brand:AOAO NEW ENERGY
item no.:AOAO-KNL-0.1L
order(moq):1set
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
Nano Pin Sand Mill Machine
SPECIFICATIONS
The AOAO-KNL-0.1L of nano vertical sand mills is a specially designed vertical grinding system. It features strong shear force and high grinding efficiency. The screen free structure design prevents leakage and blockages. It can be loaded with 0.015 mm grinding media, achieving a product size of less than 100 nanometers with a more uniform particle size distribution.
Item | Configuration |
Model | AOAO-KNL-0.1L |
Net volume | 0.1L |
Grinding media addition amount | 60%-85% |
Cooling water flow rate | About 90 L/H |
Cooling water temperature | 8-12℃ |
Cooling water inlet and outlet | 6'' hose |
Dimension | L590* W450*H750 |
Color | All stainless steel casing |
Weight | About 80KG |
Supply voltage | 380V-50HZ |
Motor brand | 2.2KW Shanghai Pinxing (If there are any changes, no separate notification will be provided.) |
Frequency converter | 2.2KW Shanghai Zhongchen(If there are any changes, no separate notification will be provided.) |
Rotate speed | 800-3000rmp, 0m/s-13m/S (linear speed) |
Bearing | ImportedSKF |
Protective device | If the temperature inside the bucket is too high, the main unit will automatically shut down |
Sealing ring | FFKM |
Mechanical seal | Double-ended cartridge mechanical seal |
Electrical accessories | Taiwan Shilin Electric(If there are any changes, no separate notification will be provided.) |
Control system | Siemens PLC, Siemens touch screen |
Inner chamber material | Zirconia ceramic material |
Pin material | Zirconia ceramic material |

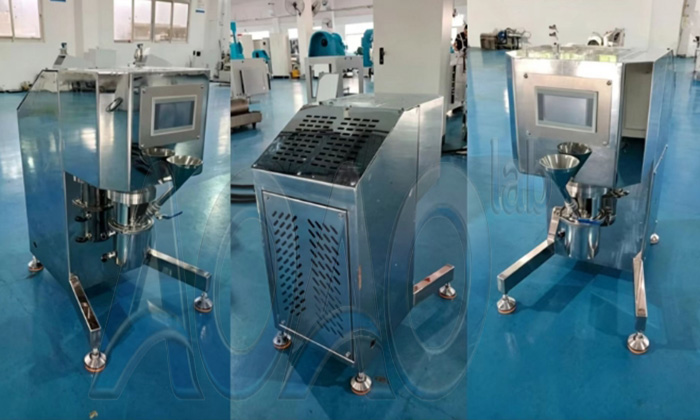

PRODUCT DISPLAY
