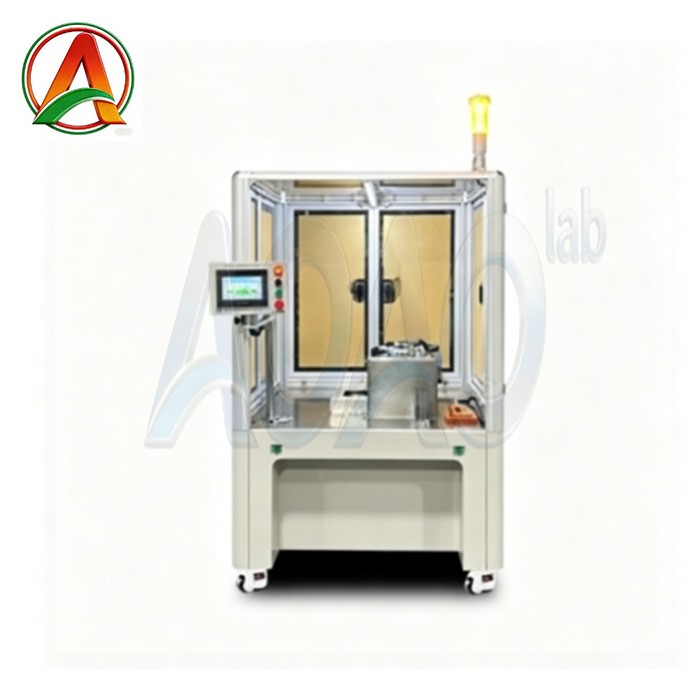

Manual Cells Feeding Machine For Prismatic Cell

Manual Cells Feeding Machine For Prismatic Cell

This is a manual cells feeding machine for lithium ion prismatic cell manufacturing, it is suitable for the battery lab line, pilot line and production line.

Basic Parameters of the Cells Feeding Machine

Technical Requirements of Each Part

1. Feeding mechanism

- Manual feeding mode, manual aluminum discharge shell and manual discharge core.

- A positioning mechanism is arranged at the place where the cell is placed.

- The aluminum shell shall not be damaged or scratched during operation.

2. Shell Entry and Transplanting Mechanism

- The positioning cell roller is pressed by the soft rubber roller to position the cell;

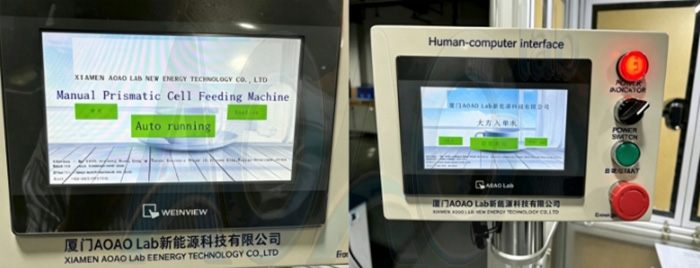

- The aluminum shell positioning and transplanting mechanism adopts the module to move the positioning position, and the mobile data can be adjusted on the touch screen;

- Before entering the shell, there is a shell suction mechanism to expand the mouth of the aluminum shell to facilitate entering the shell

- If the cell is not in place, it can be pressed into the shell manually by pressing the shell handle

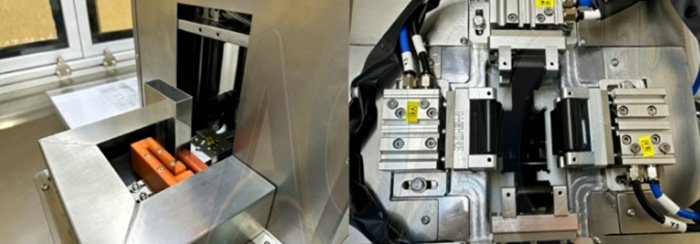

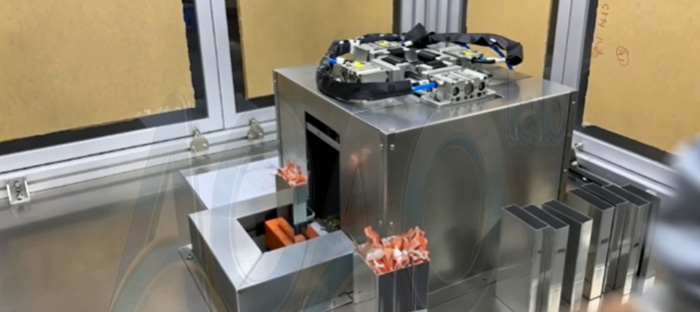

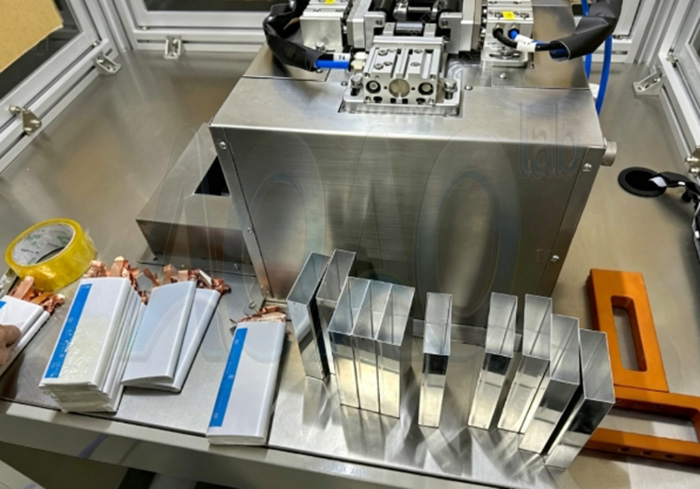

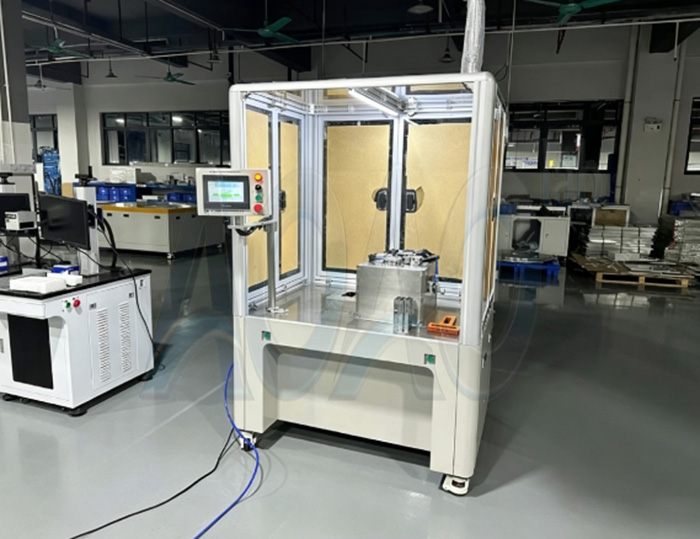

PRODUCT DISPLAY
