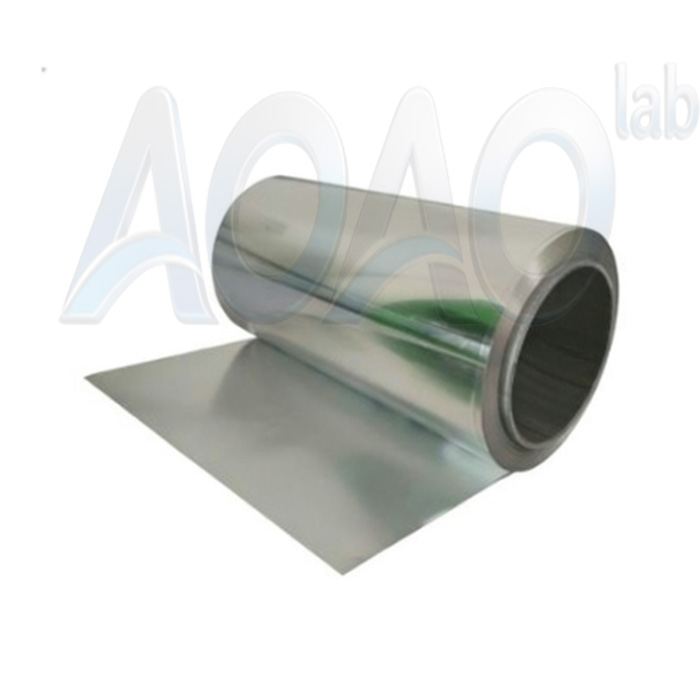

LCP And PET Composite Aluminum Foils

Brand:AOAO NEW ENERGY
Item No.:AOAO-Al-F-PET/LCP
Order(Moq):1
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Product Origin:China
Color:Silvery
Shipping Port:XIAMEN

LCP And PET Composite Aluminum Foils

AOAO NEW ENERGY provides both PET and LCP composite aluminum foils for battery research and manufacturing. According to your requirements, we can provide both LCP model and PET model composite aluminum foils.

SPECIFICATIONS

Model: AOAO-Al-F-PET/LCP

Thickness: 14μm

Widths: 280mm

Length: 50M/Roll

Item	Unit	Specification Values
Al		Al99.95
Thickness(Al+LCP/PET+Al)	mm	0.005+0.004+0.005
Widths	mm	280
Peel strength	Kgf/cm	≥0.5
Tensile strength	Mpa	≥40
Elongation	%	≥10
Solderability		Pass
Bending resistance		≥50
Volume resistivity	MΩ.um	18.58
Sheet Resistance	mΩ	4.84
Wettability	Dyne value	40
Anti-Oxidant（130℃10minutes）	/	OK
Smooth surface roughness (RA)	um	≤0.4
Smooth surface roughness (RZ)	um	≤3.0
Gross surface roughness (RA)	um	≤0.4
Gross surface roughness (RZ)	um	≤3.0

Material	Melting point(℃)	Density (g/cm3)	Shrinkage(%)	Min. thickness (μm)	Electrical insulation	Processability	Cost
PET polyester film	245-260	1.37	1.2-2.0	3.5/4.5	Good	Easy to break	Low
LCP liquid crystal film	340-350	1.4	0.1-0.2	2—3	Good	Good stability	High
