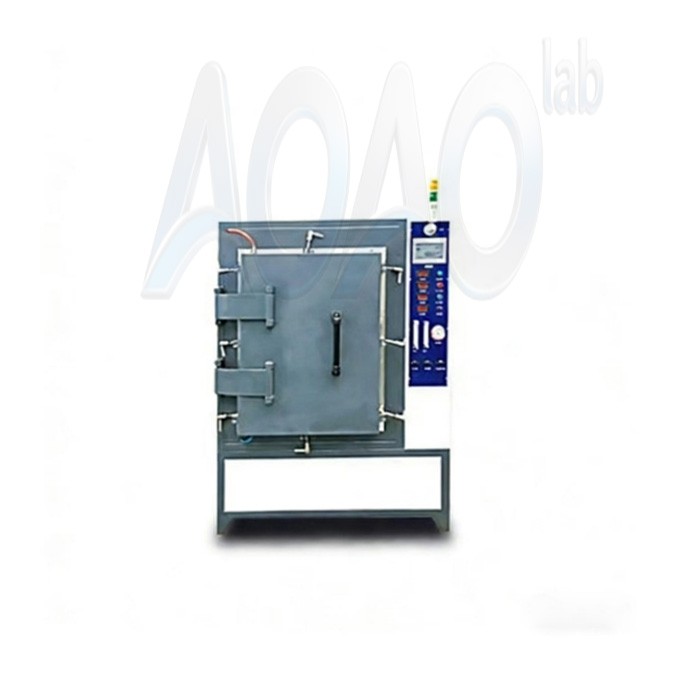

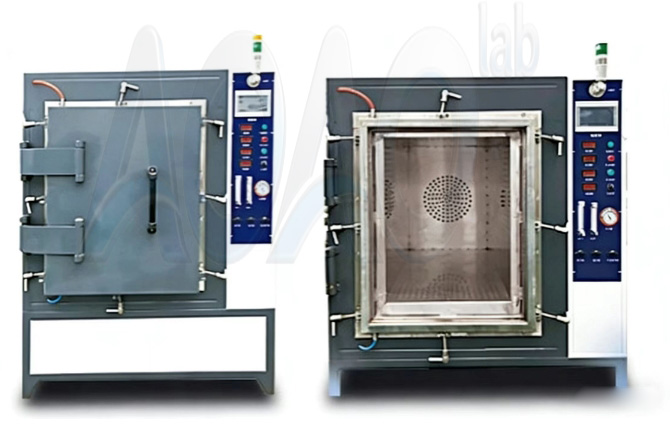

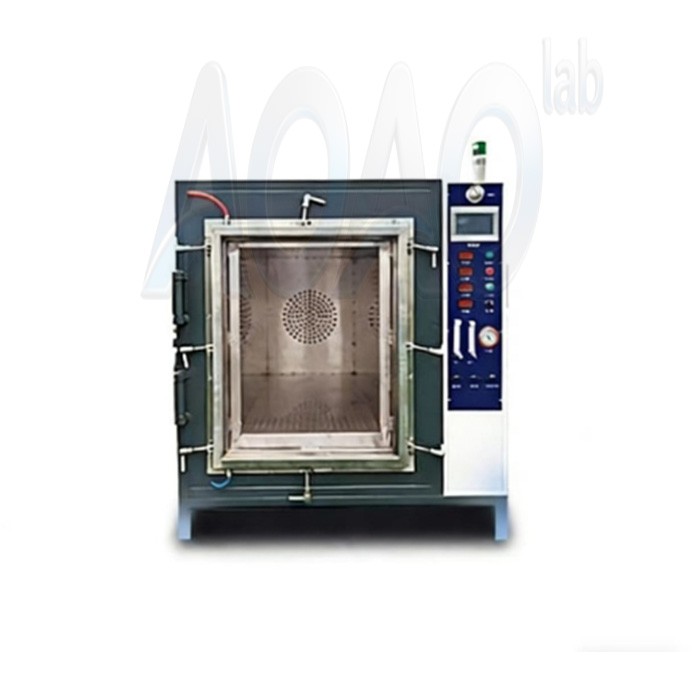

Intelligent Chamber Atmosphere Furnace

Intelligent Chamber Atmosphere furnace

SPECIFICATIONS

The vacuum system of the atmosphere furnace adopts special design technology, which ensures safe and convenient operation, good vacuum degree, and an ultimate vacuum degree of up to 100PA. It also boasts good sealing performance and long vacuum holding time. This atmosphere furnace can be filled with various atmosphere gases such as oxygen, nitrogen, and argon, with an atmosphere pressure limit of 0.1MPA. The unique water-cooled sealing technology of the furnace port ensures long-term pressure retention, excellent safety performance, and convenient operation.

Product Features:

Features high-temperature heating tubes as heating elements and employs a double-layer shell structure.

The controller is mounted on the side of the furnace door, capable of meeting various rapid sintering requirements.

The microcomputer PID controller offers simplicity in operation, precision, reliability, and safety in temperature control.

The furnace chamber utilizes 310S high-temperature heat-resistant steel material with vacuum welding technology, ensuring cleanliness and dust-free operation.

Ensures durability and longevity.

 Exceptional door sealing minimizes heat loss and enhances temperature uniformity within the furnace chamber.

Multi-segment Programmable Controller:

Microcomputer programming controls temperature, time, heating rates, and other parameters, enabling rapid sintering tests to be conducted efficiently.

 Programmable controller with a 31-segment temperature control system, incorporating phase-shifting trigger and silicon-controlled rectification.

Employs microprocessor P.I.D. control mode with multi-segment programmable control, truly realizing automatic control and operation.

Safety Features:

Equipped with an over-temperature protector, power-off function when the door is opened, a cooling fan on the cabinet surface, and an alarm system for abnormal conditions in the resistance furnace (including heater failure, temperature sensor malfunction, memory content abnormality, and over-temperature issues), providing audible and visual alerts to ensure safe and accident-free operation.

Incorporates various safety protection measures such as over-current, over-voltage, and over-heating to guarantee the safe use of the electric furnace.

Ceramic fiber board is chosen as the thermal insulation material, offering excellent insulation properties and low surface temperature on the cabinet shell.

Technical Parameters:

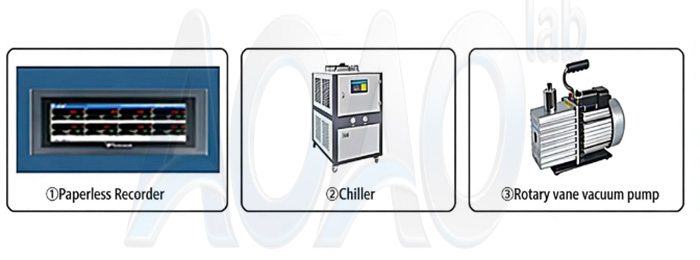

Optional accessories

1. Paperless recorder

2. Chiller

3. Rotary vane vacuum pump
