High-speed vibration ball mill machine

Spec

50ml,80ml

Each max loading capacity

1/3 of the milling tank volume

Feed size

<1mm

Discharge size

Mix 0.1μm

Shimmy frequency

1200 Circumferential / min

Timing range

0~999S and normally open file

Motor spec

Single-phase 220V 180W

Current input

Single-phase 220V 50Hz

Size

405×365×260mm

Characteristic

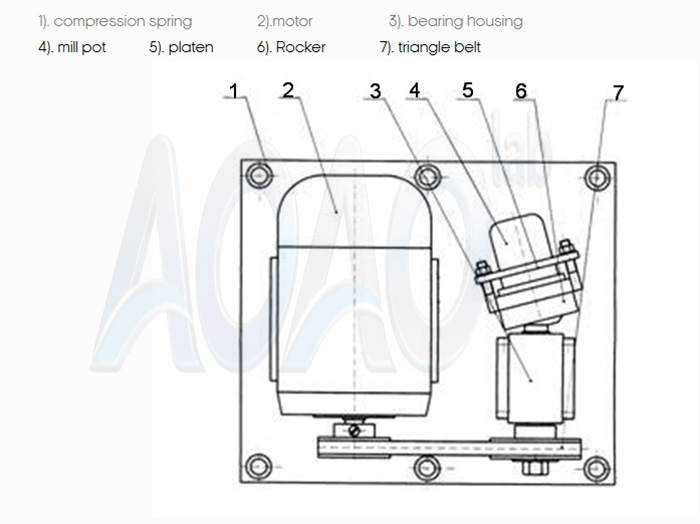

High-speed vibrating ball mill has an eccentric pendulum shaft,

When the motor at high speed, generating eccentric swing tank;

Bring the whole bracket down vibration, so that the grinding

process is finished in a high speed wobble and vibration

of three-dimensional space.

Greatly improving the speed and efficiency of grinding.
