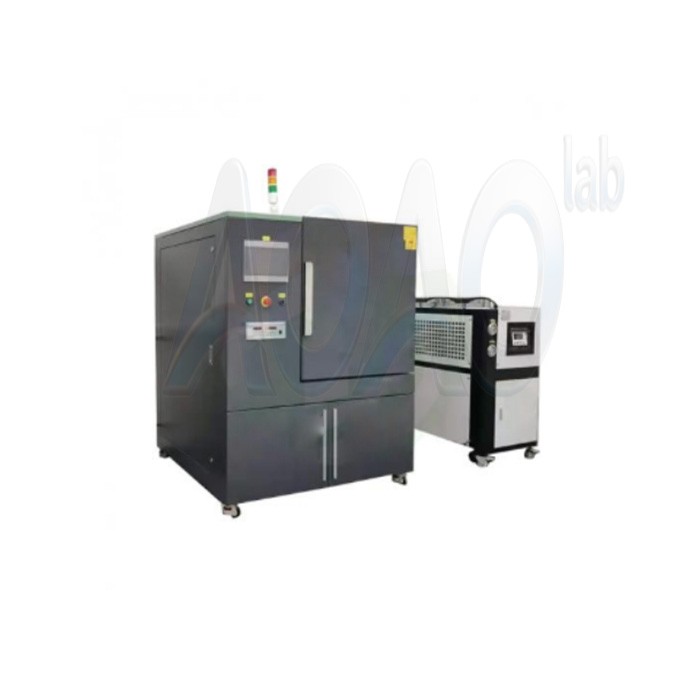

High-Temperature Vacuum Molybdenum Furnace

         Model

 AOAO-ZK1400-20

         Usuage

 This equipment is mainly used in high vacuum heat treatment of metal materials, vacuum welding, tool welding, vacuum annealing, brazing. Main application industries and processes:3D printing metal workpieceand alloy materials of high vacuum heat treatment; Medical X-ray tube high vacuum degassing.

Important parameters

Furnace structure

Horizontal type, single-chamber, furnace body and furnace door adopt double-layer water cooling, front door structure. It is composed of furnace body, heating chamber, vacuum system, gas charging system, water cooling system, electric control and power supply system.

Maximum temperature

 1400℃

Working temperature

 ≤1300℃

Work area size

200*200*200mm

Equipment powder

 25KW（Including heating system, vacuum unit）

Power frequency

 50Hz

Voltage

Three-phase 380 V (±10V)

Heating system

Heating power

22KW（Adjustable actual power）

 Heating element

High temperature molybdenum belt

Heat insulation components

2 layers molybdenum insulation screen +2 layers 310S stainless steel +2 layers 304 stainless steel

 Temperature measure

 s-type thermocouple

Temperature control accuracy

 ±1℃

Heating rate

From room temperature to 1300℃ less than 150min (empty furnace)

Heating chamber

Adopt cylindrical heating chamber structure.The heat scr adopts multi-layer metallic molybdenum and 310S stainless steel structure. The high-quality 99 corundum ceramics are used between the layers. The heating element is molybdenum belt. The molybdenum heat screen is evenly around the heat insulation screen to achieve good temperature uniformity.It has long service life, good heat insulation performance, and very little vacuum outgassing. The outer frame is made of stainless steel (304) plate material, and multiple reinforcement ribs are welded to ensure that it is not deformed.

Heating control

It adopts PID intelligent temperature control module design, can edit 30-segment heating curve, can store 20 sets of process formulas, combine PLC to realize automatic alarm protection functions such as overpressure, overtemperature, overcurrent, etc., 10-inch LCD touch screen display operation, with easy operation, powerful function, good stability and other characteristics.

Vacuum system

Vacuum configuration

It consists of a mechanical pump, a molecular pump and a high-vacuum butterfly valve, an inflation valve, a vent valve, a vacuum pressure gauge, etc.

Ultimate vacuum

 ≤6.67*10-4Pa（No load, cold state, after purification）

Working vacuum

 ≤6.67*10-3Pa

Vacuum measurement

 Compound vacuum gauge ZDF5227BV01 measuring range 1.0*105~1.0*10-5Pa

Vacuum unit power

 4.5 KW

Advantage

 High efficiency, no pollution, low energy consumption, low noise

    Cooling system

Vacuum furnace body, furnace door, vacuum unit and water-cooled electrode all need cooling water.The system is distributed to each cooling part by the main water supply pipe, using a closed water circulation system, each electrode cooling is equipped with a water flow observer, and the main pipe is equipped with a water pressure alarm system.The water inlet has a branch connected to the tap water pipe for emergency use in the event of a power outage. Equipped with 5P industrial refrigerator, power 3Kw.

    Security system

The safety system includes: water stop, over-temperature, heating over-current, rotary vane pump, diffusion pump, and the equipment has functions such as self-checking, fault self-diagnosis, automatic protection, and preventing misoperation. It also has sound and light alarm prompts and corresponding interlocking and interlocking protection.

Equipment installation and operation conditions (for reference)

1、Environmental conditions

 1）Ambient temperature：－15－45℃

 2）Altitude：≤2000m

 3）Relative humidity：≤75%

2、Power condition

 1）Rated voltage: three-phase 380V (±10V)

 2）Rated frequency：50Hz

 3）Power distribution of the whole machine：≥50KW

3、Water cooling conditions

 1）Water pressure：0.2~0.4MPa

 2）Inlet water temperature：≤15℃

 3）Water flow：≥5m³/h

 4）Water quality requirements: soft water without silt and impurities, resistivity ≥ 1M (Ω·mm2/m), PH≈7.This product requires continuous supply of cooling water that meets the requirements during operation. In order to ensure the safety of this product, the buyer must prepare its own emergency water source, and there is still cooling water supply when the power is cut off.

4、Gas

 1）Nitrogen: used for protecting atmosphere purity ≥99.999%, 0.2~ 0.4Mpa

 2）Compressed air: the driving air source used to start the device, the pressure is 0.3~0.6MPa, oil-free, water-free clean gas.
