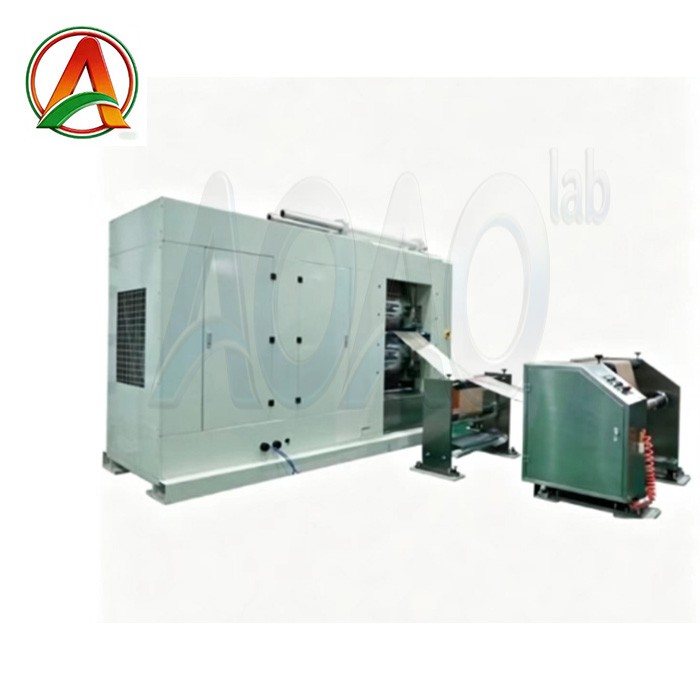

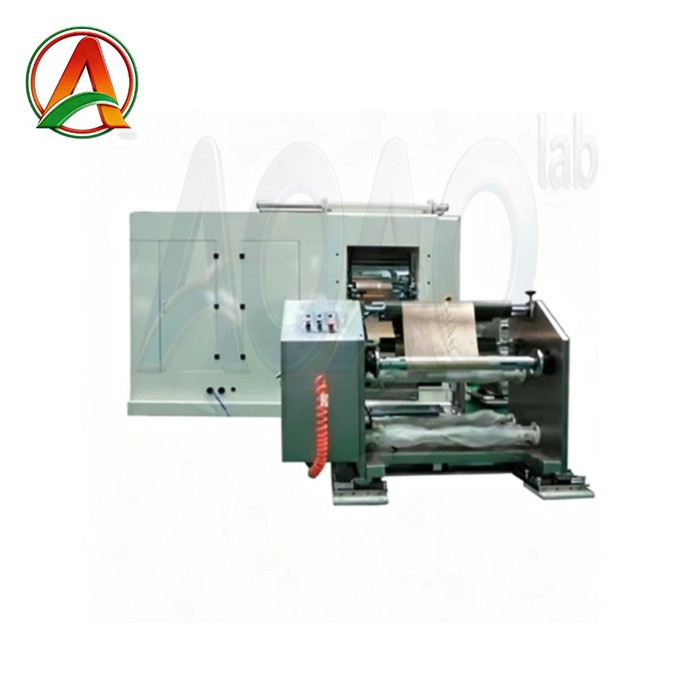

High Precision Electrode Rolling Press Machine for 4680 Tabless Battery

Brand:AOAO NEW ENERGY
item no.:AOAO-TBR-650
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:xiamen
Lead Time:30 days

High Precision Electrode Rolling Press Machine for 4680 Tabless Battery

SPECIFICATIONS

Contact us for more information about this battery electrode rolling press machine, it is suitable for all lithium-ion battery electrode preparation, especially 4680 tabless battery.

Through putting pressure on roller’s crack, the dual function of pressure on loose electrodes and roll cracks prompt the drawing sheet reach to the presupposed thickness or the presupposed density. The Lithium battery reaches the preset volume energy density and battery performance at last.

Item	Description	Note
Suitable system	Lithium iron phosphate, Cobalt acid lithium, Manganese acid lithium, Lithium nickel manganese cobalt, such like the above continuous rolling technology of positive and negative battery electrode.
Base material	Aluminum foil（12um-1.5mm）、copper foil（6um-1.5mm），Width：150mm-580mm。

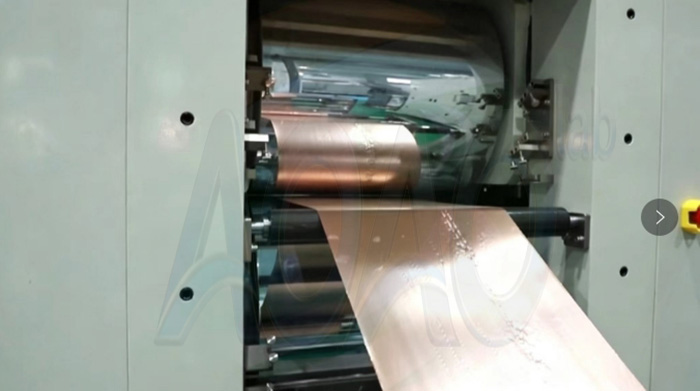

Roller mode	Two rollers up and down horizontal roll pressure, the drive is on the right of the feed end	Motor drive bit
Work pressure	Pump station provide constant pressure, suitable for high pressure rolling of positive and low pressure adjustment
Equipment speed	No grade, the up and down roll line in the same speed.	Max30m/min
Bearing clearance automatic adjustment function	Using the cylinder to adjust, open automatically.
Control mode	PLC, touch screen digital control

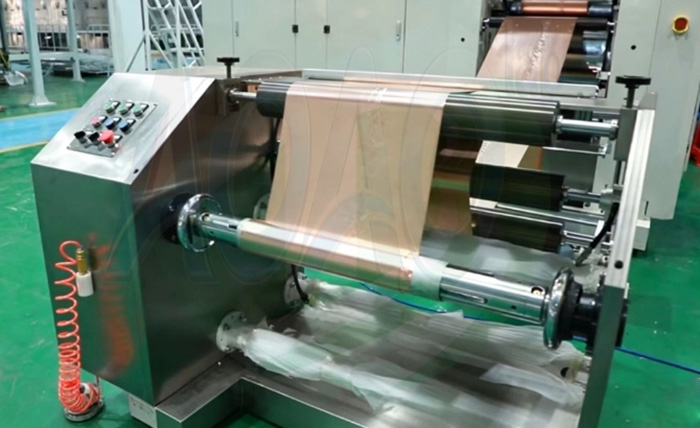

Feeding part	φ76mmX580mm Gas expanding shaft unwinding, lock valve design, with blunt air gun
Picking platform	Stainless steel front feeding platform，the pressure plate is pneumatically lifted and scale control.
Tension control	Through the shaft pressure sensor collect signal, magnetic powder brake adjustment(adjusting range: 2.3-20kg), constant tension can be set in the scope of 0-50N .

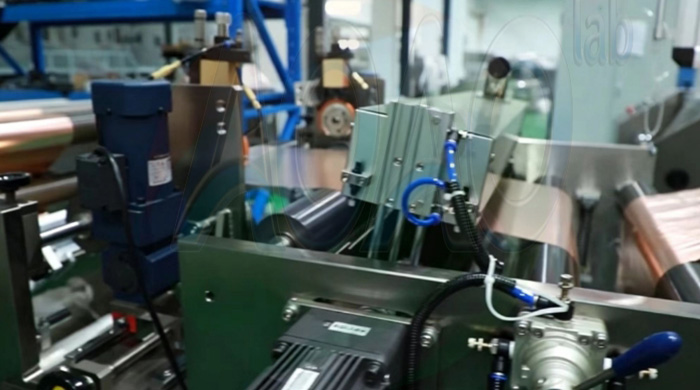

Correcting system	Photoelectric correction, linear guide(maximum range of movement is 100mm)
Corrective action	Stepper motor(1.27NM).
