Automatic Lithium Battery Electrode Sheet Resistance Tester

Automatic Lithium Battery Electrode Sheet Resistance Tester

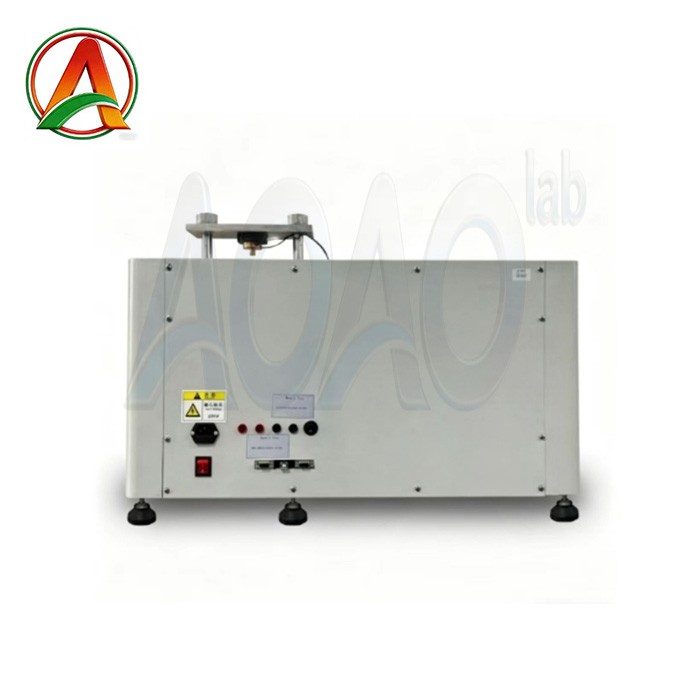

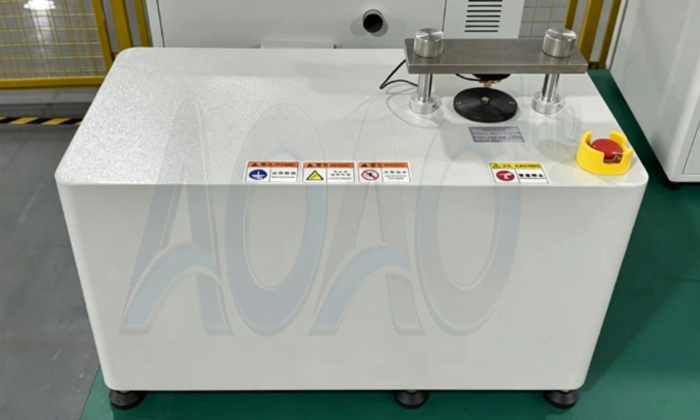

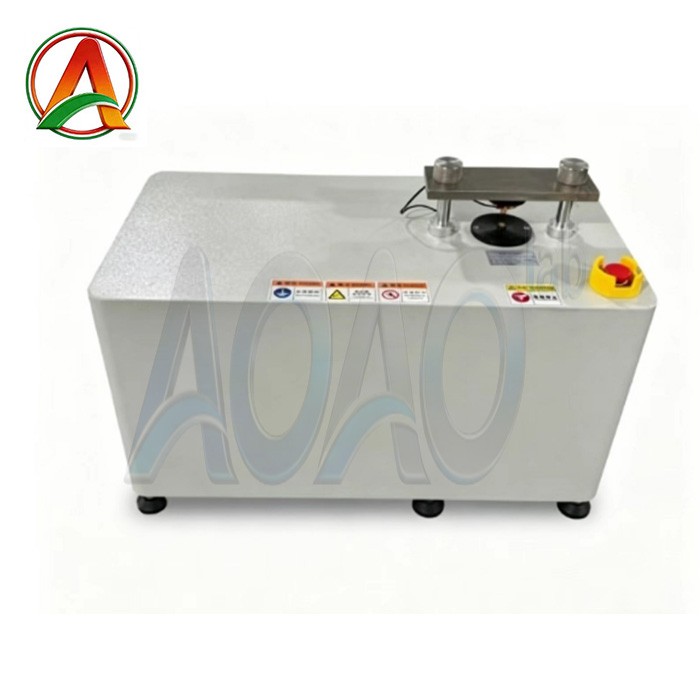

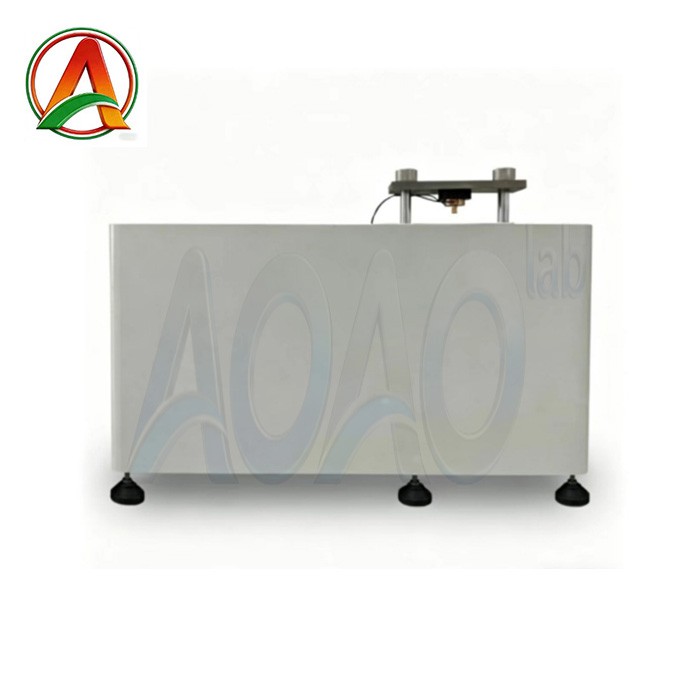

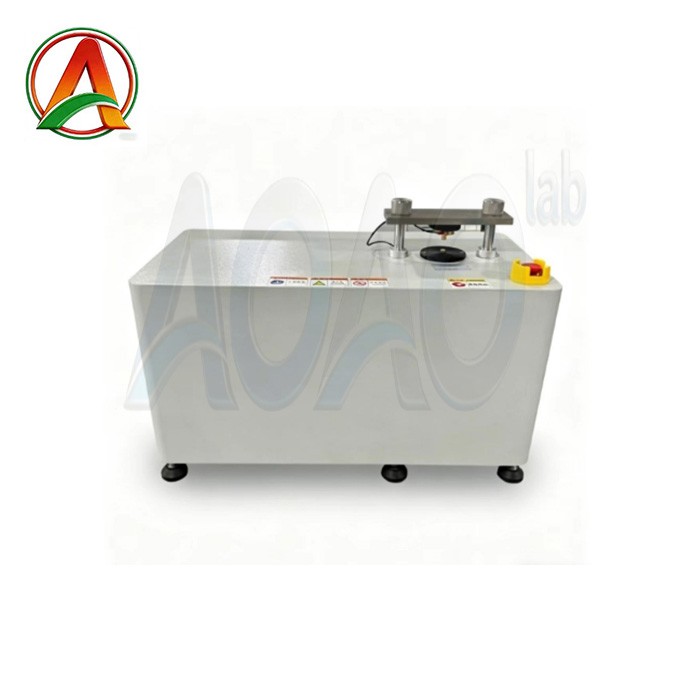

This AOAO-FT-551 automatic lithium battery electrode sheet resistance tester uses a flat probe, analyze the overall resistance of the electrode by applying pressure to the tested sample

Brand:AOAO
item no.:AOAO-FT-551
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN

Automatic Lithium battery Electrode Sheet Resistance Tester

SPECIFICATIONS

This AOAO-FT-551 automatic Lithium battery electrode sheet resistance tester uses a flat probe, analyze the overall resistance of the electrode by applying pressure to the tested sample, automatically pressurize, and the pressure can be set; PC software interface operation, achieving pressure resistance, resistivity, and conductivity relationship graphs in multiple measurement modes; Provide data and report generation management. Automatic real-time sample thickness data and environmental temperature and humidity collection.

Reference method description

1.The two probe method is used to directly measure the overall resistivity of the electrode, including the resistance of the probe itself, the contact resistance between the probe and the coating, the coating resistance, the contact resistance between the coating and the current collector, and the resistance of the current collector itself; Solve the problem that the four probe method test data cannot describe the overall battery electrode value;

2. The testing process is basically the same as in actual battery applications, and a total test value includes the electronic conductivity characteristics of each part, studying the influence of the process on the electrode resistance.

3.For LFP electrodes with high resistance, stable results can be obtained when the loading current is small, while for graphite electrodes with low resistance, stable results can be obtained when the loading current is relatively high. For LFP, NMC, and graphite electrodes, stable measurement results can be obtained when the loading current is above 10mA. As the loading pressure increases, the resistivity of the graphite electrode decreases

4. Factors affecting the conductivity of polarizers include the content and distribution of conductive agents, dry powder stirring strength, compaction density, and the bonding state between the collector and the coating

Parameter data：

Model	AOAO-FT-551
Resistance	10^-7～2×10^7Ω
Electrical resistivity	10^-7～2×10^7Ω-cm
Electric conductivity	5×10^-7～10^7s/cm
Test current	1μA，10μA，100µA，1mA，10mA，1000mA
Current accuracy	±0.2%
Resistance accuracy	≤0.3% Standard resistance; Resolution 0. 1μΩ

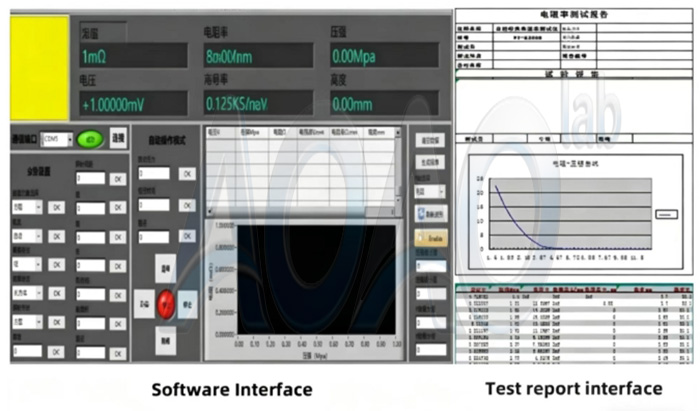

PC software operation	PC software interface: resistance value, resistivity, conductivity value, temperature, pressure value, unit automatic conversion, cross section, height, curve graph, compaction density, generate reports, etc.
Pressure range selection	0-200kg；300kg；500kg；1000kg choose according to your needs

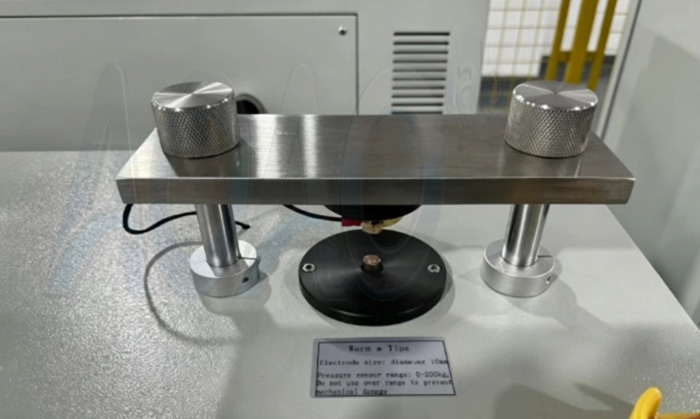

Planar probe electrode	Copper material, diameter：10mm；Other specifications can be customized
Test trip	0-20mm, Displacement accuracy 0.01mm
Sample thickness	0-10mm；precision：0.001mm
Pressure mode	Automatic (automatic operation after setting the value)
Protection function	With limit range and pressure protection; Misoperation and emergency stop protection; Abnormal alarm
Care and maintenance	Having standardized operation prompt identification; Maintenance reminder
Power source	Input: AC 220V±10%.50Hz Power consumption：<100W

Standard configuration external ordering details：

No.	Model	Name	Unit	QTY	Remark
1	551-CSX	Test line	Set	1
2	09A	Standard resistance	Pce	1-5	Purchase specifications and quantities
3	551-RJ	Analysis software	Set	1
4	PC	Computer+printer	Set	1	Configure according to customer requirements
5	551-JL	Testing technical services	Pce	1	1 measurement certificate
6	551-DJ	Gold-plated electrode	Set	1	Two electrodes form a group; Customizable
