Aluminum Alloy Battery Testing Fixture
This Aluminum alloy fixture and plate is used for lithium-ion battery and lithium sulfur batteries pressurized cycle test.
Brand:AOAO NEW ENERGY
item no.:AOAO-BJ-9080P
order(moq):1
Payment:L/C, T/T
product origin:China
shipping port:XIAMEN
Aluminum Alloy Battery Testing Fixture
SPECIFICATIONS
Parameter：
Ultimate dimensions of battery cell | L90*W82 (mm) |
Limit Pressure of battery cell | 3000N |
Material of fixture plate | Aluminum alloy |
Thickness of fixture plate | 8mm |
Dimension of the fixture | 90*110mm |

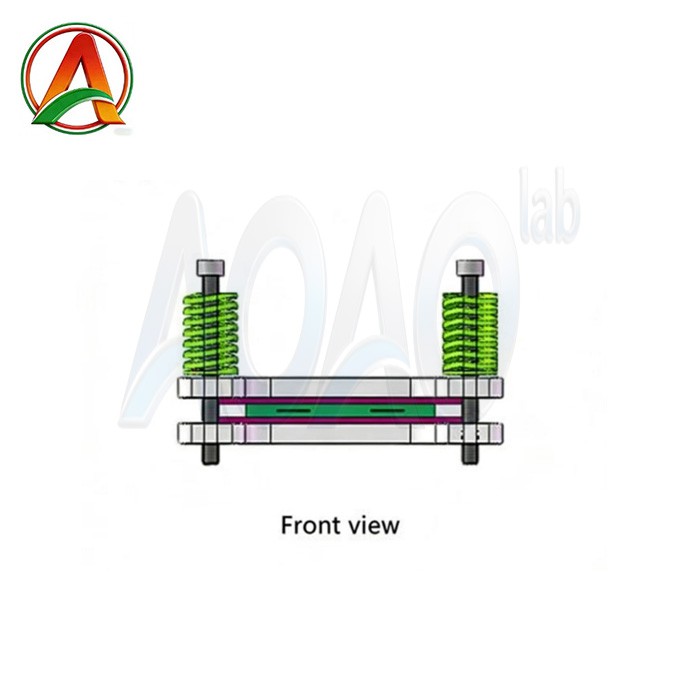

Accessories (Unit: mm)
Item | Dimension(mm) | Quantity |
Rectangular springs | D14 | 4 |
Hexagonal screw M6 | L60 | 4 |
Hexagonal nuts M6 | / | 4 |
Paper | 90*84*0.25 | 2 |
Silicone pad | 90*84*2 | 2 |
Process Description：
1. Power off
2. Loosen the fixing screws
3. Remove the fixture top plate
4. Place the cell into the pressure fixture
5. Put in the top plate and pre-tighten the fixing screws

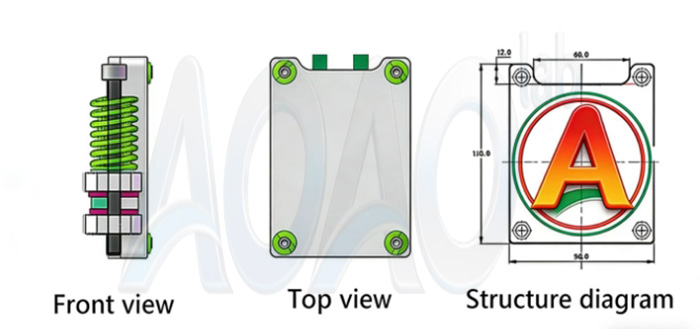

PRODUCT DISPLAY
