21700 Cylinder Cell Case

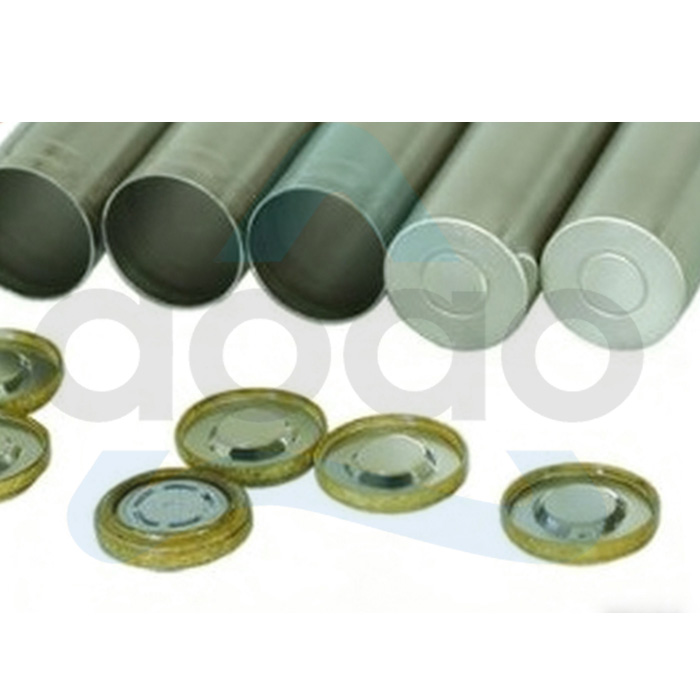

21700 Cylinder Cell Case with Anti-Explosive Cap and Insulation O-ring

100set/package included Cylinder cell case and Cap

0.5-1.0USD/set

Application:

Used for 21700 battery research, producing.

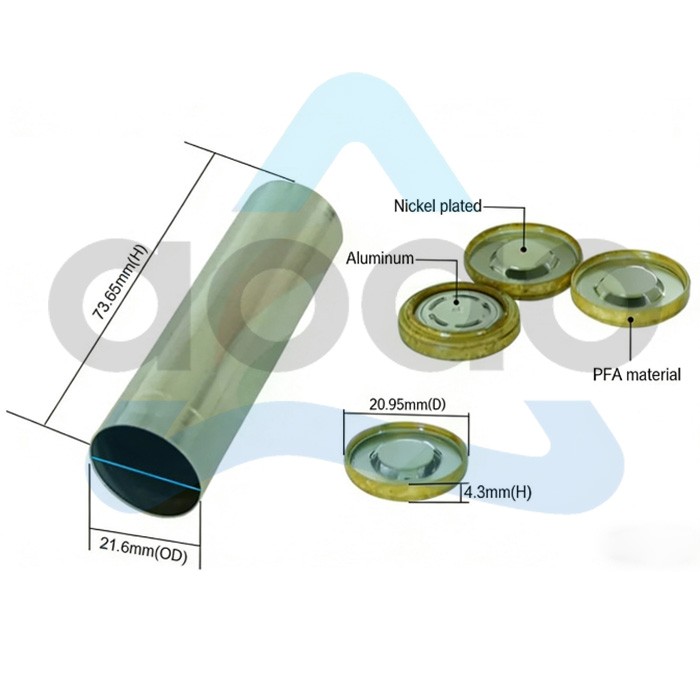

1. Case Dimensions:21.06mm(ID) x 21.13mm(OD) x 73.65mm(H)

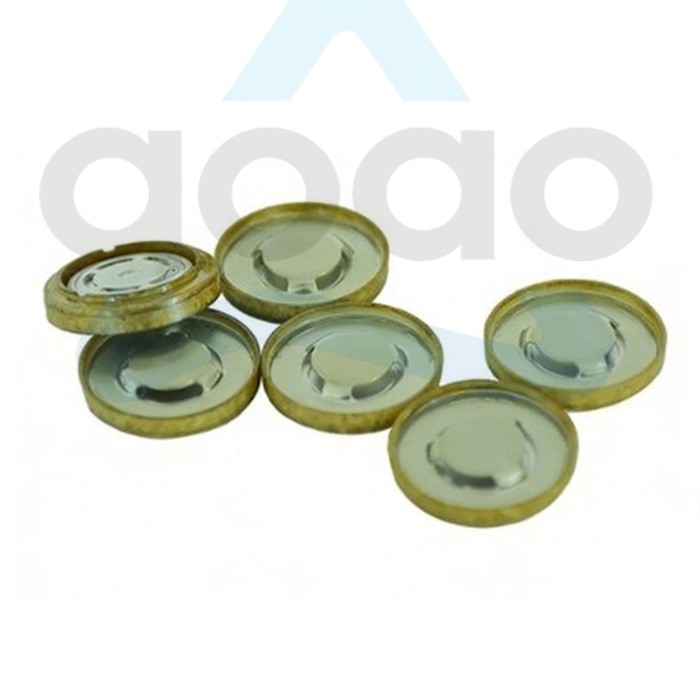

2. Top Cap with O ring :20.95mm(D) x 4.3mm(H)
4. 18650 and 38120 Cylinder Cell Cases can be supplied;

5. Material of 304ss and 316ss can be supplied.

Materials

Case are made of 304 stainless steel

Cap are made of Nickel plated steel

Seal O-ring are made of nylon(Optional)

Insulating gasket are made of PP
