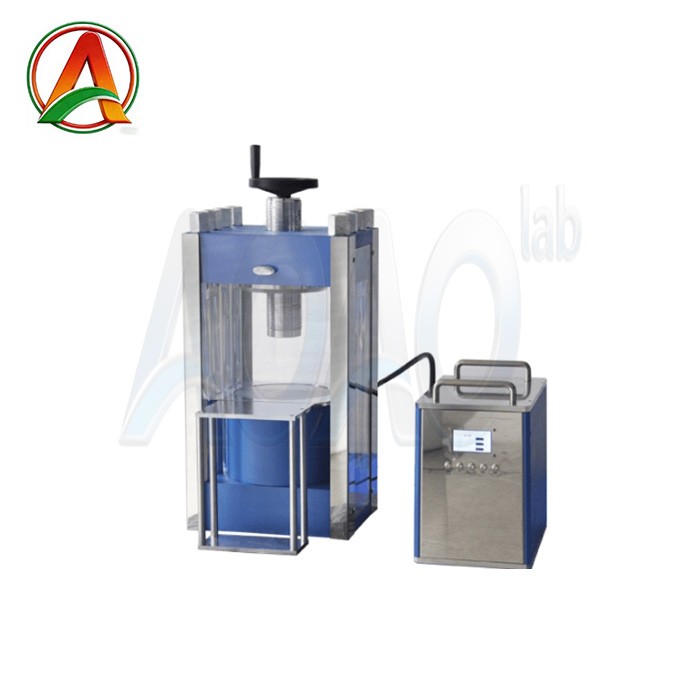

200T Electric Hydraulic Press Machine with Optional Die Sizes

Pressure range

0-200T

Piston diameter

Chrome cylinder diameter 290mm(d)

Pressurization process

Program pressurization - program pressure maintenance - timed pressure relief

Compress time

0-999.59 minutes

Pressure conversion

The program automatically converts the pressure on the sample

LCD

4.3 inch LCD screen

Equipment protection

Steel protection with plexiglass door

Cylinder stroke

50mm (T)

Space size

290*300mm(M*N) can be equipped with heightened column

Dimensions

1000*650*1050mm(L*W*H)

Device power

220V(50Hz/60Hz)

Equipment weight

850kg

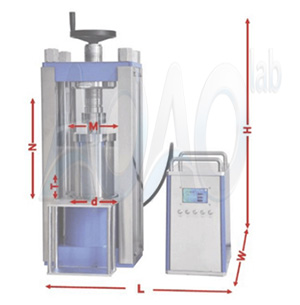

Tablet press size diagram
