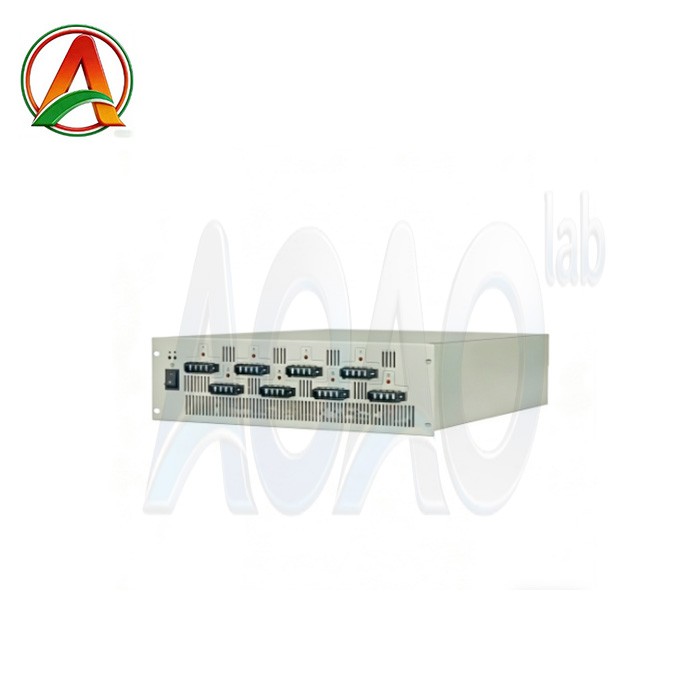

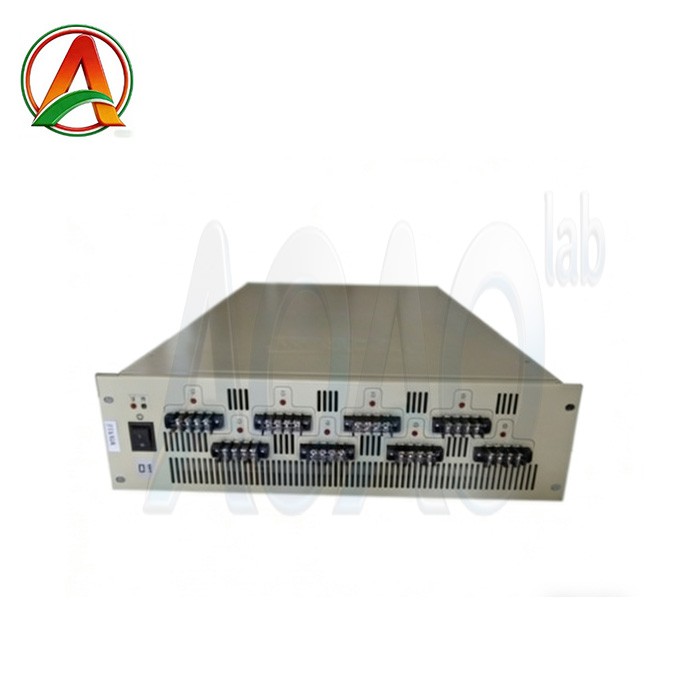

15V6A Battery Pack Test System

AOAO-BTS-15V6ABattery tester equipmentis an eight-channelbattery analyzerto analyze polymer battery and cylindrical batteries from 12 mA to 6000 mA, up to 15V

Brand:AOAO NEW ENERGY
item no.:AOAO-BTS-15V6A
order(moq):1set
Payment:L/C,T/T,Western Union
product origin:China
shipping port:XIAMEN
Lead Time:7days

15V6A Battery Pack Test System

SPECIFICATIONS

1. AOAO-BTS-15V6ABattery tester equipmentis an eight-channe lbattery analyzerto analyze polymer battery and cylindrical batteries from 12 mA to 6000 mA, up to 15V.

2. Thisbattery test systemprovides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing and etc.

3. This battery pack test system is mainly used for laptop battery pack performance testing.

Model		Battery pack tester AOAO-BTS-15V6A
Warranty		One Year limited warranty with lifetime support
Source voltage		AC110V-220V±10% Customized, 50/60HZ
Input impedance		≥1MΩ
Input power		1088W
Channel characteristics		Constant current source and voltage source adopt double closed loop independent structure
Channel control mode		Independent control
Voltage range per channel		Charge : 3mV-15V Discharge : 2.5V-15V Accuracy : ±0.1%
Current range per channel		Charge : 12mA-6A Discharge : 12mA-6A Accuracy : ±0.1%
Output power per channel		200W
Time	Current response time	0-6A : 20ms
	Step time range	1s-365*24h,Time format : 00:00:00(H:Min:S)
Record condition		TimeΔt ：1-60000s VoltageΔU : 40mV-20V CurrentΔI : 20mA-10A
Charging mode		Constant current charge,constant voltage charge, constant current and voltage charge
Discharging mode		Constant current discharge,constant power discharge
Conditions of constraint		Time, voltage, current, capacity
Cycle	Cycle range	1-65535 times
	Steps pur cycle	254
Protection		Power-down data protection,off-line test function and Safety condition setting protection
Voice		≤85dB
Communication interface		Serial ports

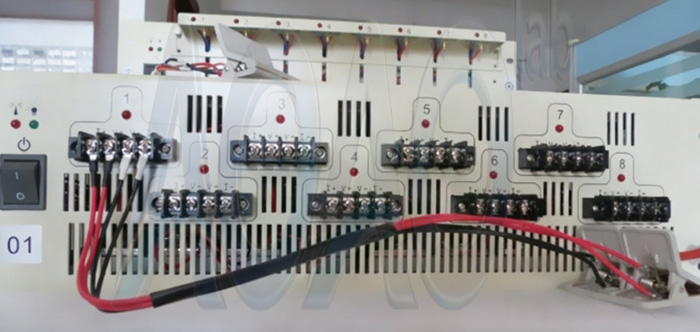

Channel number per unit		8
Dimension(LWH)		485508263mm
Working temperature/humidity		-10-40℃ ≤70%RH
