15A Pouch Cell Test Fixture
Brand:AOAO NEW ENERGY
item no.:AOAO-4340-5
order(moq):1
Payment:L/C,T/T
product origin:China
shipping port:XIAMEN
15A Pouch Cell Test Fixture
SPECIFICATIONS
Ensure consistent, accurate, and repeatable testing of pouch cell batteries with our high-performance Split-Type Pouch Cell Test Fixture, Model AOAO-4340-5. Engineered to meet the demanding requirements of battery R&D, quality control, and production environments, this fixture delivers exceptional electrical and mechanical performance across a wide operational range.
Model | AOAO-4340-5 |
Executive standard | SC/QS-A-2008 |

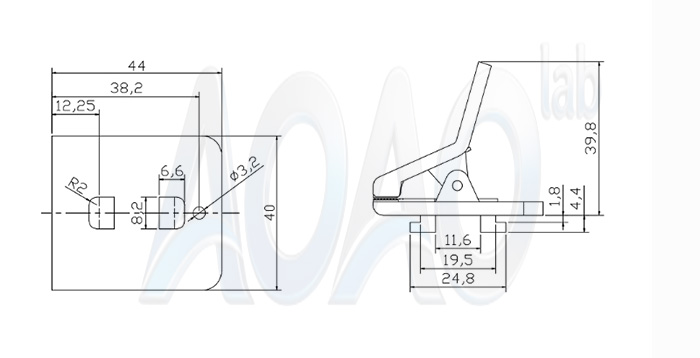

Dimension | see below drawing |
Working temperature | -55℃ to 125℃ |
Base material | Polysulfone, brass, stainless steel |
Nickel coated | Ni(3-5um) |
Contact resistance | ≤1mΩ |
Insulation resistance | 500VDC≥1*109 Ω |
Current | ≤15A， Voltage: ≤500V |
Humidity | ≤90% |
Clamping force | 10N |
Mechanical life | ≥30000 times |
Unit | mm, tolerance±0.05mm |

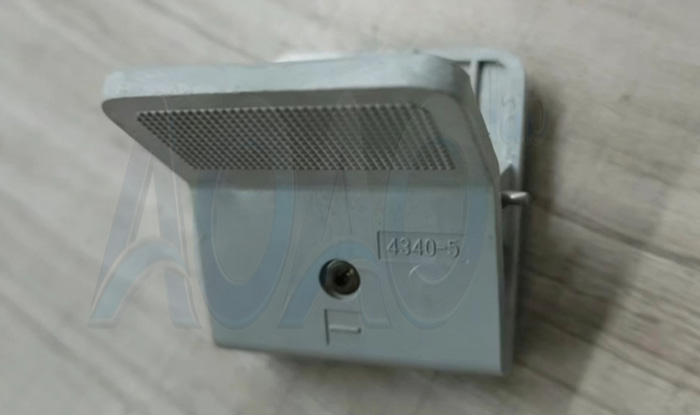

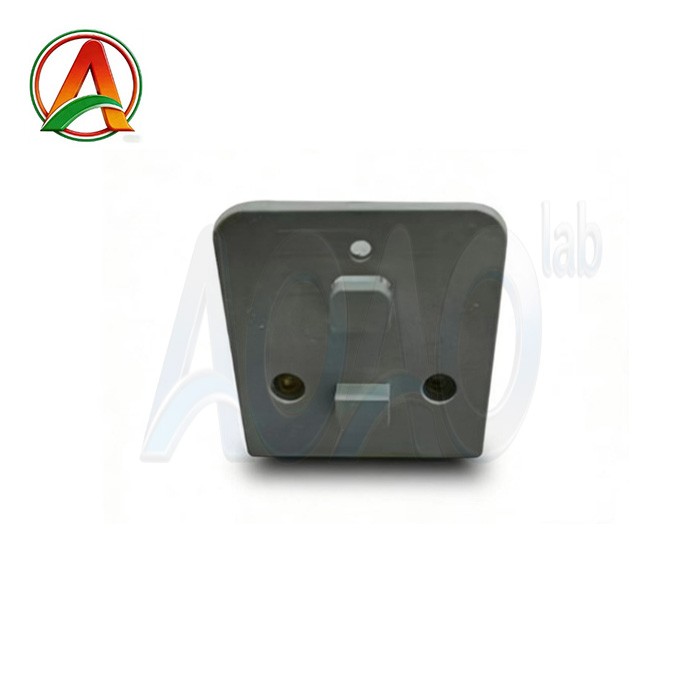

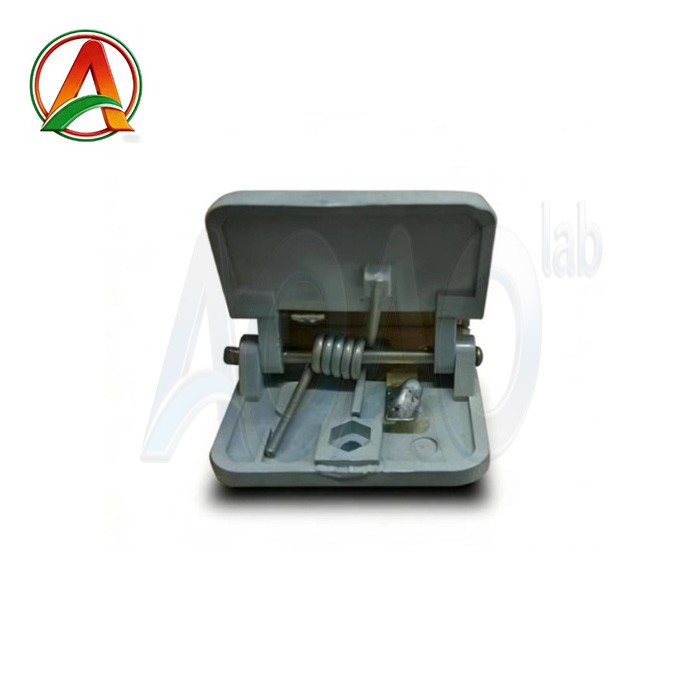

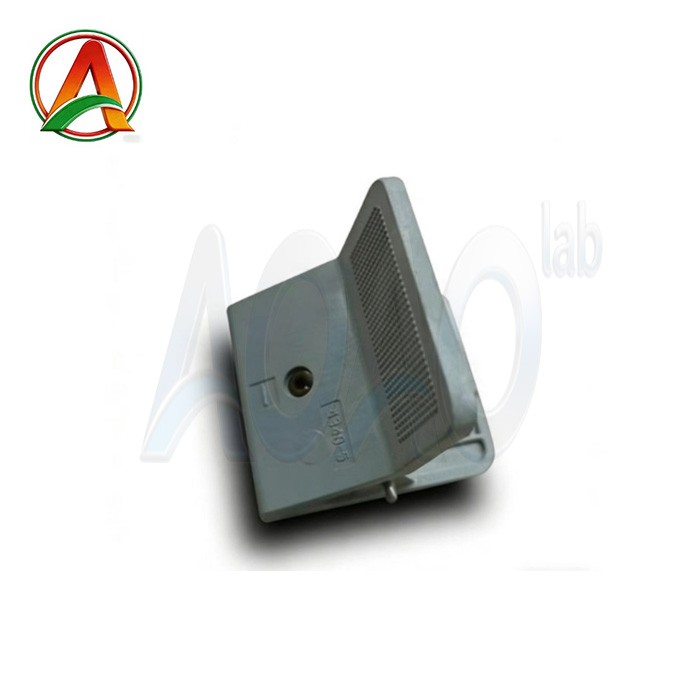

PRODUCT DISPLAY
