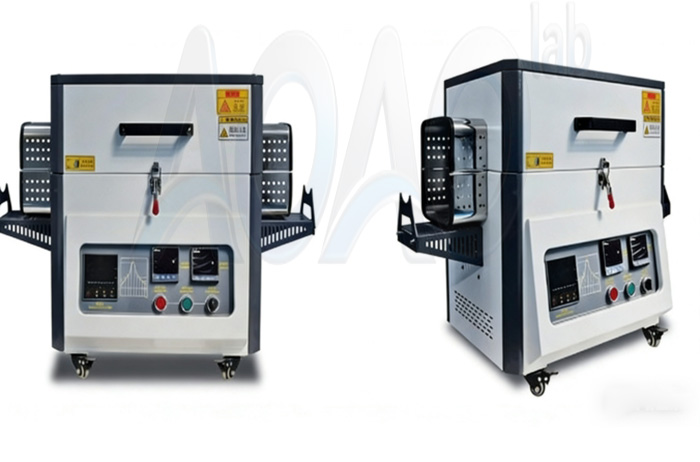

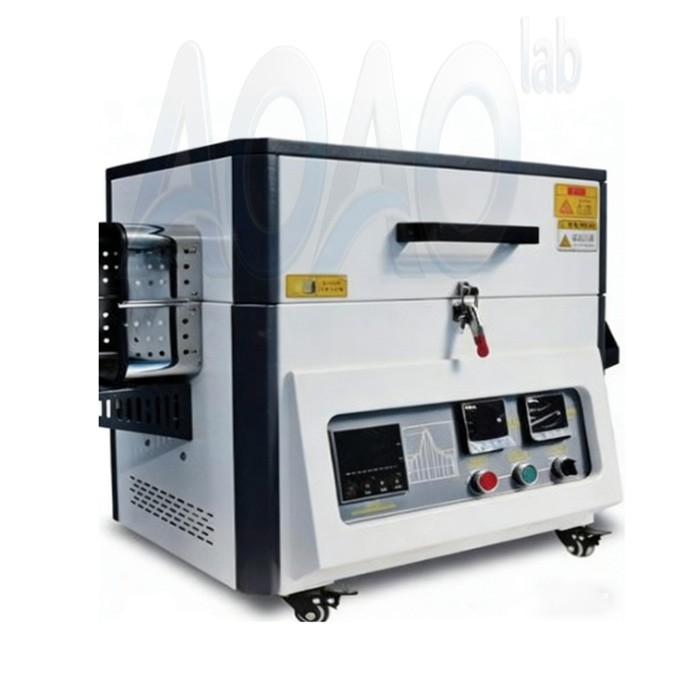

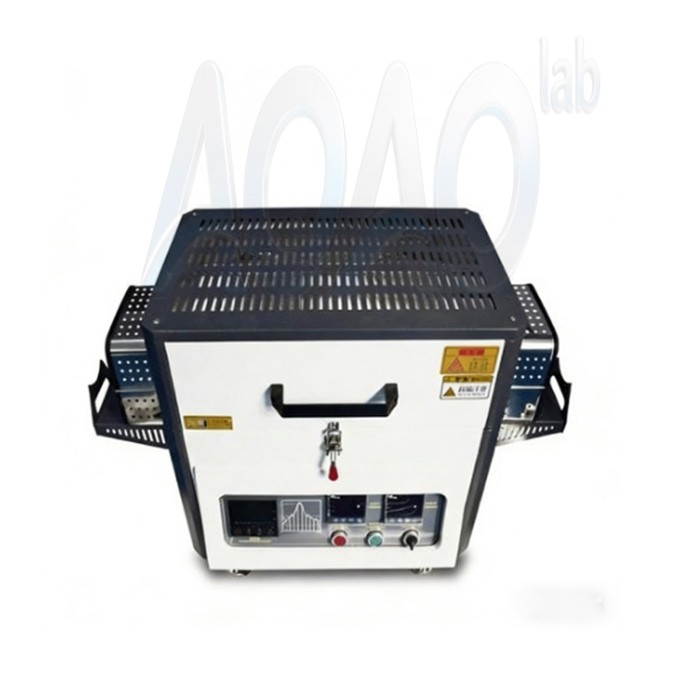

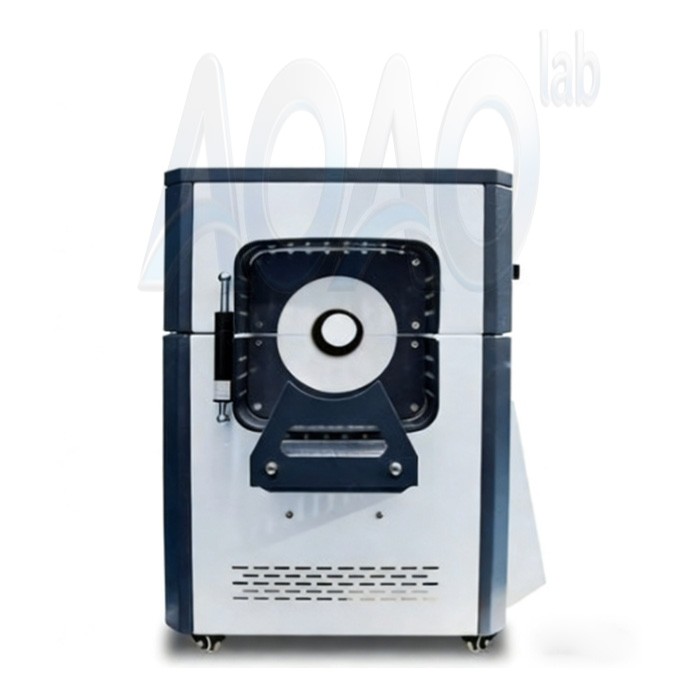

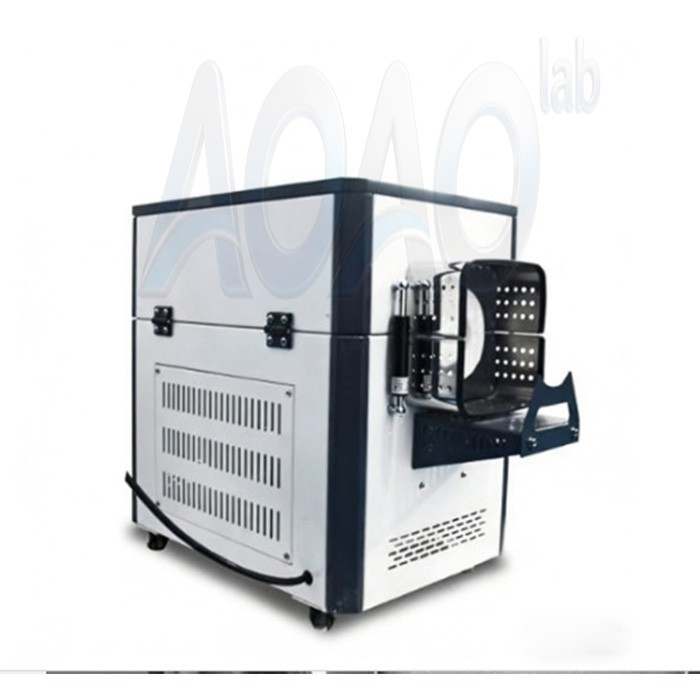

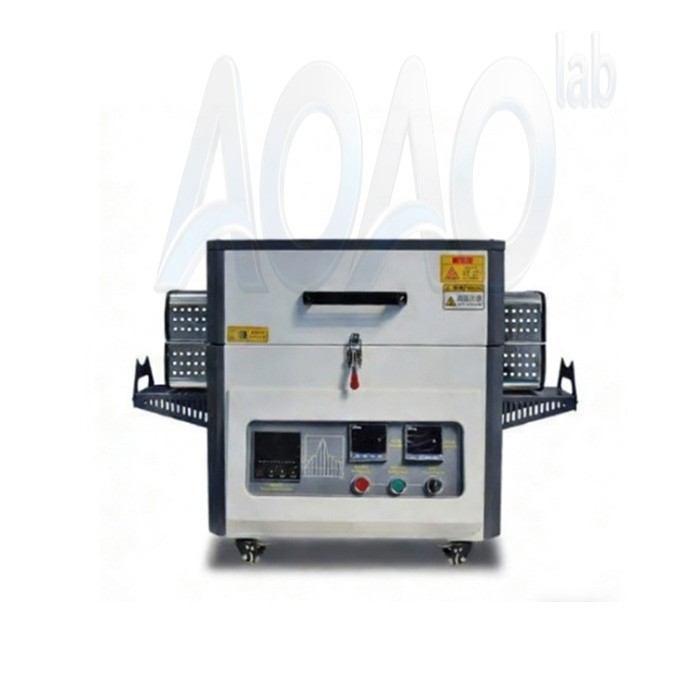

1200℃ High Temperature Tube Furnace

This 1200℃ high temperature tube furnace is main using for ceramics, metallurgy, electronics, glass

Brand:AOAO NEW ENERGY
Item No.:AOAO-G1200-60
Order(Moq):1set
Payment:L/C,T/T
Product Origin:China
Shipping Port:XIAMEN

1200℃ High Temperature Tube furnace

SPECIFICATIONS

Main uses

Ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractories, special materials, building materials, universities, scientific research institutes, industrial and mining enterprises for powder roasting, ceramic sintering, high-temperature experiment, material treatment, high-temperature atmosphere sintering, ceramic glue discharge, flue gas treatment, annealing and sintering, etc.

The furnace takes the resistance wire as the heating element, adopts the double-layer shell structure and 31 section program temperature control system, phase-shifting trigger and thyristor control. The furnace adopts fully imported high-purity alumina fiber, vacuum formed fiber and light plate material. Double furnace structure is adopted. The furnace has the advantages of balanced temperature field, low surface temperature, fast temperature rise and fall rate, energy saving and so on.

It adopts international advanced technology, self-developed new type with high performance and high energy saving, and adopts energy-saving ceramic fiber material double-layer structure, which can reduce the external temperature to normal temperature and make the temperature distribution in the inner cavity uniform.

Model	AOAO-G1200-60
Voltage	AC 220V
Heating power	3KW
Furnace tube size	60*1000mm
Furnace tube material	Quartz tube
Heating zone	400mm
Constant temperature zone	200mm
Maximum operating temperature	1200℃
Long term operating temperature	1000℃

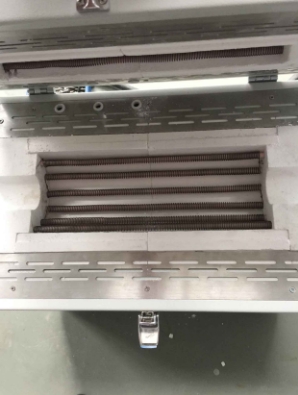

Heating element	Nickel chromium alloy wire
Heating rate	1-20 ℃/min, adjustable
Recommended heating rate	5-8 ℃/min
Control accuracy	±1℃
Atmosphere	Oxygen, Nitrogen, Argon and other atmospheres
Temperature measuring element and temperature measuring range	K thermocouple, temperature measurement range 0-1200 ℃. The thermocouple is close to (contact) the outer wall of the tube, which can reduce the outer temperature to normal temperature and make the temperature distribution in the inner cavity uniform.
Electrical components	Some are imported Schneider brands

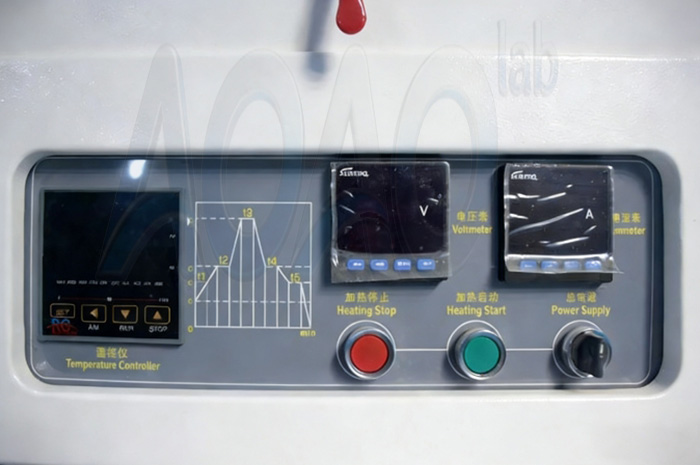

Instrument control

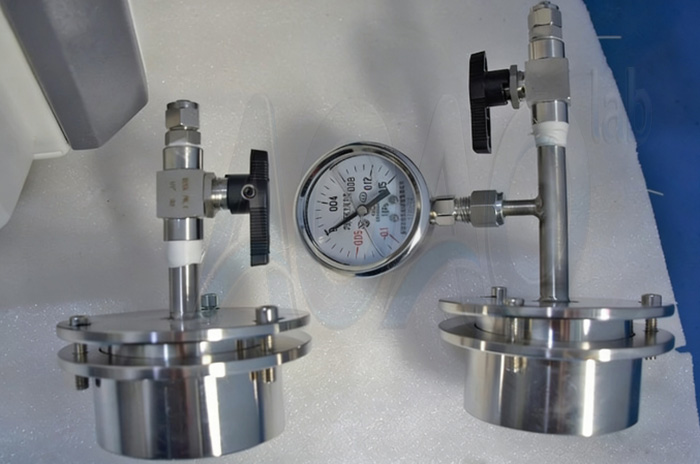

Sealing components	Flange
Vacuum system (optional)	Low vacuum 200-2000pa High vacuum 6.67x10-3pa
Flowmeter (optional)	50-500ml/min

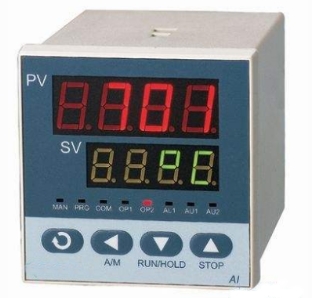

Control mode	Control mode: full automatic control system, which can run automatically from room temperature to set temperature. The system is controlled by thyristor, and the temperature control system is modularized, with simple structure and convenient maintenance. It adopts Yudian instrument, imported thyristor control, programmable 31 sections, multi-section power limiting function, multi group PID parameter self-tuning function, free setting of constant temperature and insulation curve, non-interference switching function, and the instrument has the function of temperature correction and compensation. Equipped with paperless recorder, it can record in real time, view historical reports, and realize data storage and output.
Number of programmed curve segments	31 sections are adjustable, which can reduce unnecessary trouble caused by manual setting.
Digital display	Double display of measuring temperature and setting temperature.
Display accuracy	±1℃
Furnace layout
Control characteristics	Modular structure of control system, long-life design of key components of equipment, simple and reliable process, good stability and high precision.
Air cooling system	The fan impeller is directly installed at the bottom of the double-layer furnace shell and assembled with the control system. When the furnace is heated, air cooling can reduce the surface temperature of the furnace shell and protect the heat dissipation of electrical appliances, make personnel operation safer and improve efficiency.
Refractory material	The furnace lining adopts imported high-purity alumina fiber, vacuum formed fiber material and light hollow aluminum oxide plate. It has high service temperature, small heat storage capacity, rapid heat and cold resistance, no crack, no slag falling and good thermal insulation performance (the energy-saving effect is more than 80% of that of the old electric furnace). Double furnace structure, which not only has fast heating speed, but also has the characteristics of strong and durable, and no collapse in long-term use.
Thermal insulation material	Imported alumina multi fiber insulation material, the insulation layer is 150mm.
Shell	It is welded by steel plate and profile, and the shell is equipped with detachable protective plate, which adopts electrostatic spraying and paint baking. Fine workmanship and elegant appearance.
Furnace structure	Double layer furnace shell structure, air cooling circulation, reduce the shell temperature, and the shell surface temperature is less than 60℃. The surface of the inner furnace is coated with high-temperature alumina coating, which can improve the heating efficiency of the equipment and prolong the service life of the instrument.
Energy saving performance	Light weight, fast temperature rise, energy saving more than 50%, time-saving and labor-saving.
Spare parts	One manual, one certificate, one stove hook, one pair of high-temperature gloves.
