100L Capacity Vacuum Planetary Mixer Machine

The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.

Brand:AOAO NEW ENERGY
item no.:AOAO-XFZH100
order(moq):1set
Payment:L/C,T/T,Western Union, Paypal
product origin:China
shipping port:XIAMEN
Lead Time:7days

100L Capacity Vacuum Planetary Mixer Machine

SPECIFICATIONS

The vacuum planetary mixer is excellent for preparing LiCoO3, LiFePO4, Phosphors and ceramic slurry without gas bubble. And the processed material results in the better dispersion and uniformity.

Model	VacuumPlanetaryMixer AOAO-XFZH100
Low speed revolution and rotation	Frequency conversion motor power	11KW
	variable-frequency drive	11KW
	Revolution speed	0～35rpm
	Impeller speed	0～55rpm
High speed dispersion	Frequency conversion motor power	15KW
	variable-frequency drive	15KW
	Dispersion plate	Diameter : DIN160 Speed : 0～3800rpm Linear speed : 0～23.5m/s
Mixing barrel	Dimension	Dia.596mm×H.500mm
	Capacity	Design capacity : 140L Working capacity : 100L
	Materials	Sus304 stainless steel, with thickness 5mm
Vacuum degree	-0.098MPa, no less than -0.085 MPa after 24hours
Voltage supply	Operating voltage 380 v / 50 hz / 3 phase, Control voltage 24 v DC
Weight	About2800KG
Dimension (LWH)	2000×1200×2750（mm）

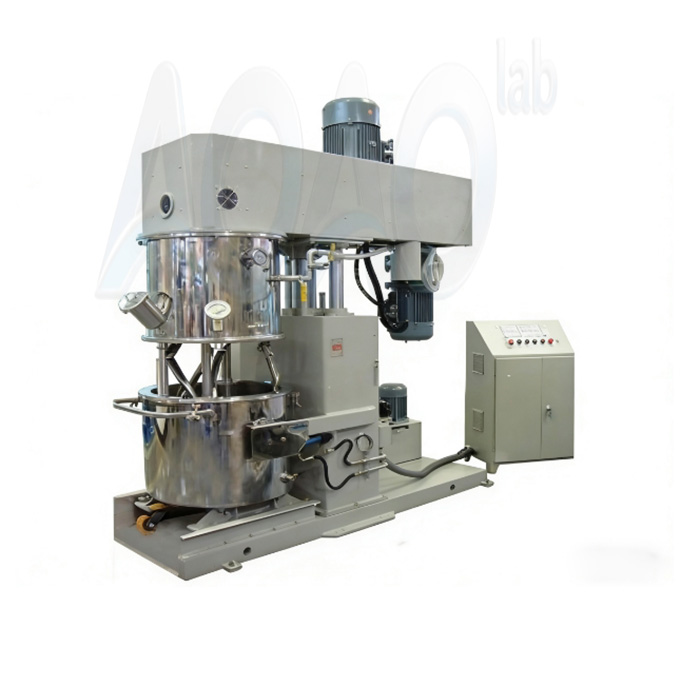

PRODUCT DISPLAY

100L Capacity Vacuum Planetary Mixer Machine.jpg
