1200°C Single-Zone Split Tube Furnace With 50mm OD

Model Number:AOAO-50mmfurnace
Dimension(L*W*H):50mm OD x 700mm length
Compliance:CE Certified
Warranty:Two years limited warranty with lifetime technical support
Payment:T/T, Western Union, PayPal, Credit Card, Cash, Alipay, L/C etc.
Delivery Time:5 days

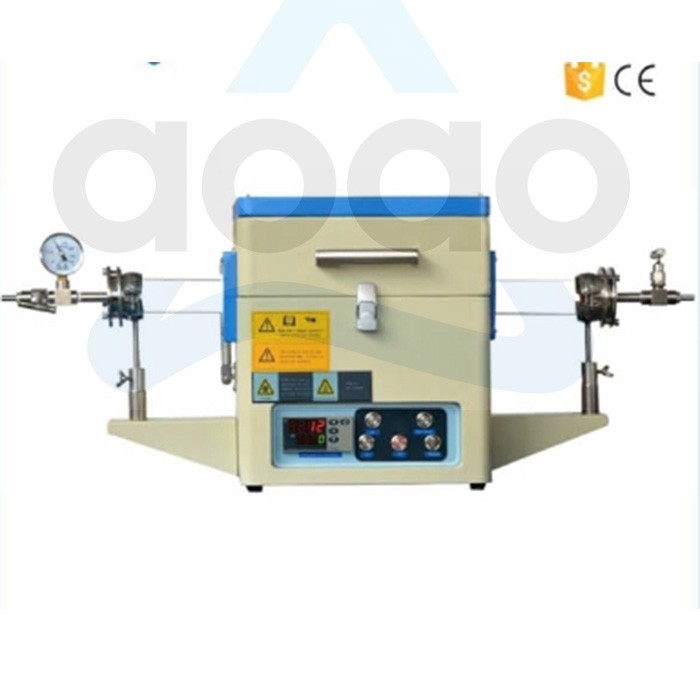

1200°C Single-Zone Split Tube Furnace With 50mm OD

AOAO-50mmfurnace portable split tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.

1200°C Single-Zone Split Tube Furnace With 50mm OD.jpg

Features

1.Compact, portable and lightweight design.
2.Split furnace chamber for fast and easy tube access.

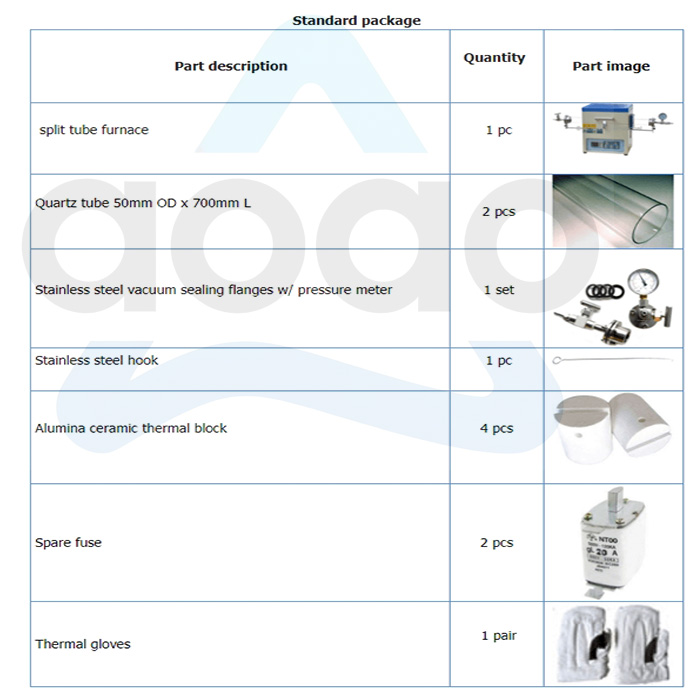

3.Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
4.Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
5.Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)

6.Long life type K thermocouple.

Tube size	50mm OD x 700mm length It can be customized
Maximum working temperature	1200°C
Constant working temperature	1100°C
Minimum working temperature	Ambient
Constant working temperature under vacuum	1000°C
Rated vacuum pressure	0.001 Pa / 0.0075 millitorr / 0.00001 mbar
Rated positive pressure	0.02 MPa / 150 torr / 3 psi
Heating element type	Resistance coil wire
Thermo couple type	K
Refractory lining	Mitsubishi (Japan) 1500 grade fiber alumina
Temperature controller	Single PID, 30 segments
Maximum heating & cooling rate	< 30°C / min
Heating zone length	8"
Constant temperature zone length	3"
Temperature controller precision	+/- 1°C
Vacuum sealing flange kit	Stainless steel vacuum sealing flanges with one vacuum gauge,two valves and four thermal ceramic blocks.
Electrical requirements	110VAC, 50/60 Hz single phase, 1500 watts
Gas inlet/outlet	1/4" hose barb with 1/4" BSPT (British Standard Pipe Thread)
Unit dimensions	27 x 13 x 16" (WxDxH)
Unit weight	55 Lb
